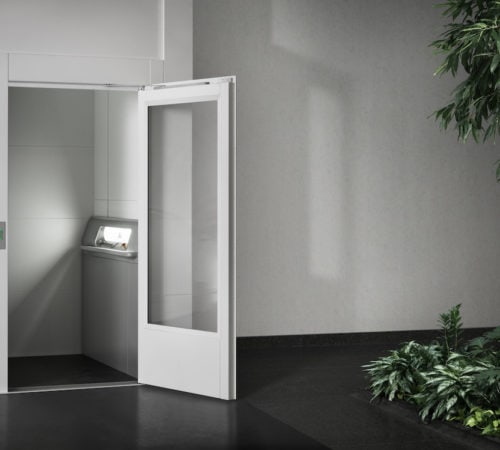

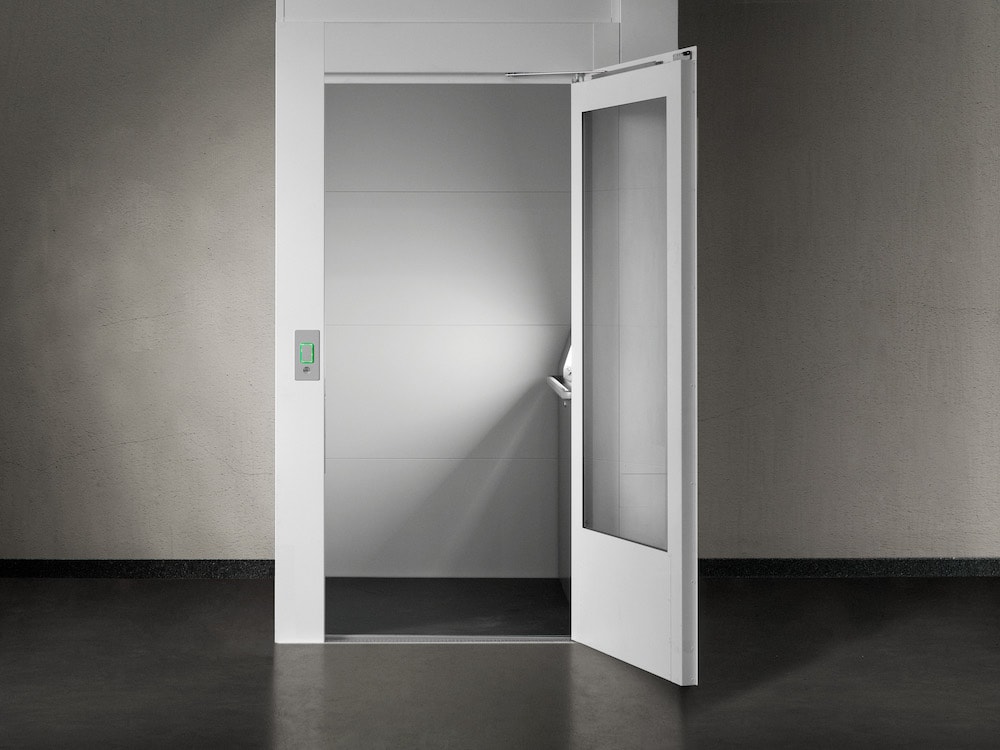

Concerto GS Vertical Platform Lift

Suitable for: Sitting IconStanding IconWheelchair IconWheelchair + attendant Icon

The Concerto GS vertical platform lift is a practical solution lending itself to a wide range of building applications and access requirements.

Whether you are working on a new build or adaptation project, the Concerto GS can be easily incorporated due to its free-standing modular structure and fully flexible configuration.  It is self-contained, fitting even in the smallest of spaces with no need for a lift shaft or a separate machinery room.

It can be specified with up to six stops and to a lifting height of up to 12 metres.

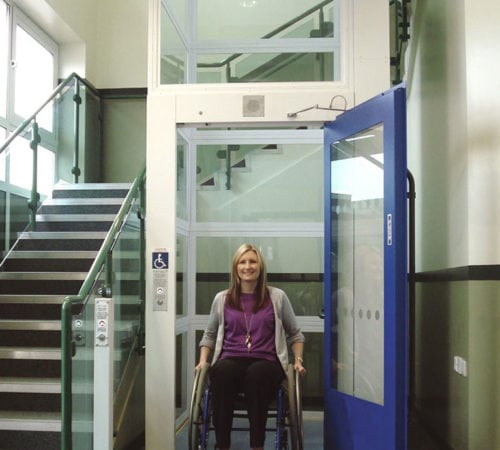

The Concerto GS is a trusted favourite; installed in thousands of locations such as schools, offices and retail stores in the UK and around the world.

A truly flexible, proven solution for easy access

Designed to give the user a feeling of security, the Concerto GS incorporates high build quality with automatic controls, a partially enclosed cabin, battery backed lighting and emergency lowering. The self-sustained nut and screw drive offers a smooth ride and tried and tested reliability.

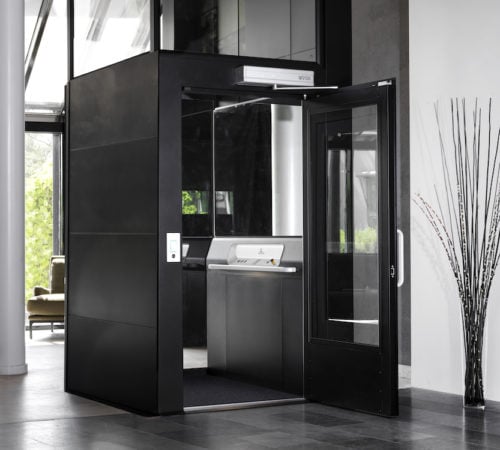

The Concerto GS can be customised with a wide selection of colours and enclosure options, ensuring that it discreetly blends into the surrounding building. The lift can be installed inside or outside the building and does not require a machine room as the machinery and controller is contained within the unit itself.

Key Features

Flexible – suitable for a multitude of applications both internally and externally

Reliable – uses a low maintenance, self-sustained nut and screw drive

Customisable – structure, doors and floor can be customised using a range of colours and finishes

Quick installation – a shallow pit and the ramp option ensure building works are kept to a minimum

Technical Specification

Lift Sizes: Eight platform sizes are available. Ranges include 900 x 1480; 1000 x 1480 and 1100 x 1480.

Number of Floors: Maximum travel: 12 metres. Number of stops: Up to six.

Usage & Suitability: People with impaired mobility and wheelchair users. Internal & external locations

Technical Compliance: The Concerto GS Vertical Platform Lift complies with EN81-41, EU Machinery Directive and Part M of the Building Regulations.

Load Capacity: 410kg – safe working load. 500kg – load capacity.

Installation: Quick installation with minimal building work – the ramp avoids the need for a pit. If a pit is required (i.e. when no ramp is supplied) pit depth is 50mm.

Operation: Automatic controls

Power Supply: Single Phase 240 V 20 A or 3-phase 415 V 20 A. Battery backup for emergency lowering and platform illumination.

Drive System: Automatic nut and screw drive with patented safety nut.

Speed: 0.15 m/s

Warranty: 12 months parts and labour only

Optional Extras

Soft start/stop and automatic lubrication

Wide range of enclosure and door configurations

Powered door

Choose from up to 210 RAL colours

Glazed shaft panelling

Ramp instead of a pit (mandatory for external applications)

Authorised Key Holder

Autodialler (with or without GSM)

Intercom

Machine side cladding
