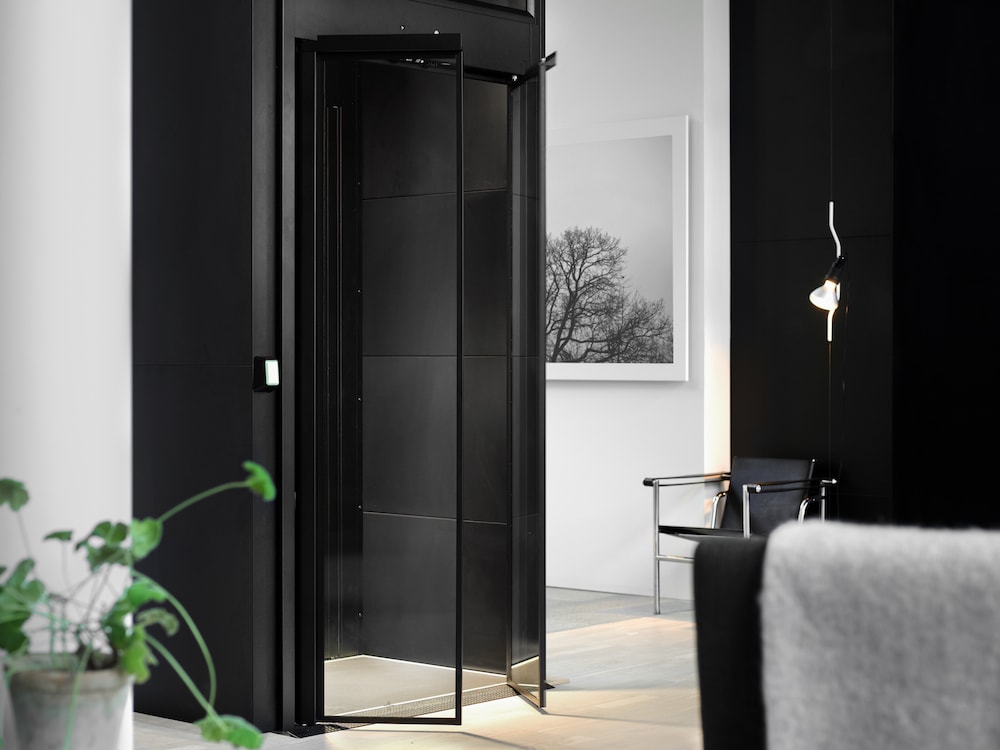

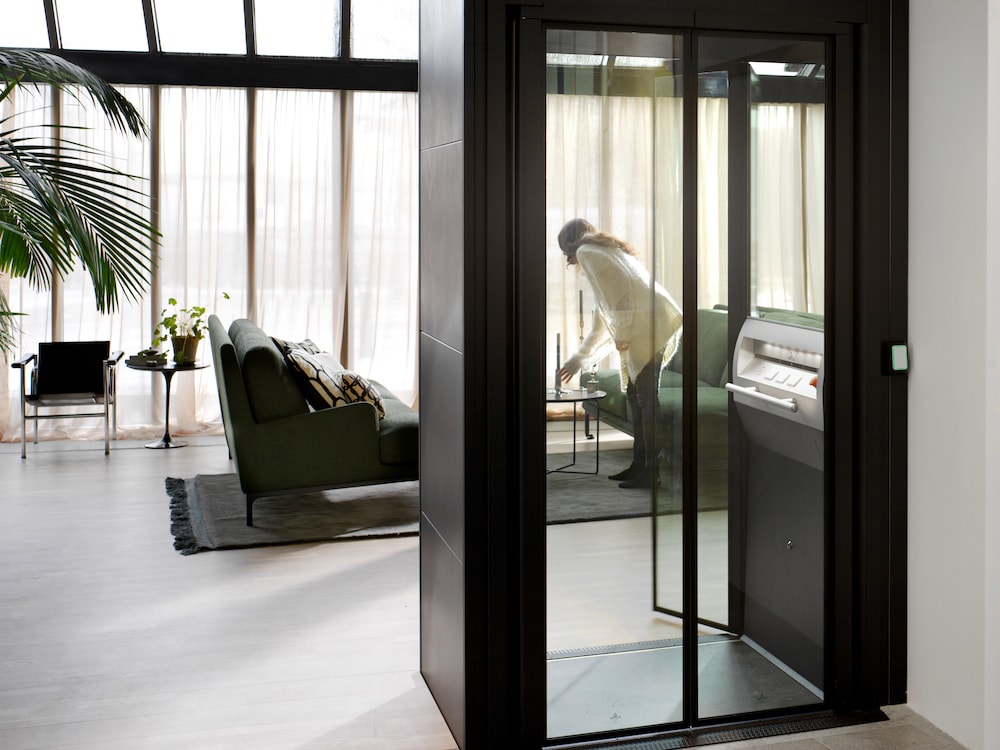

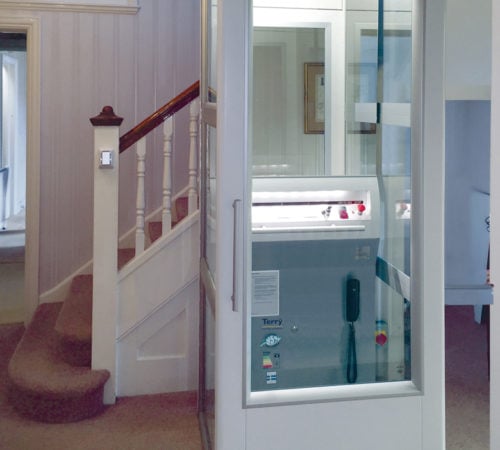

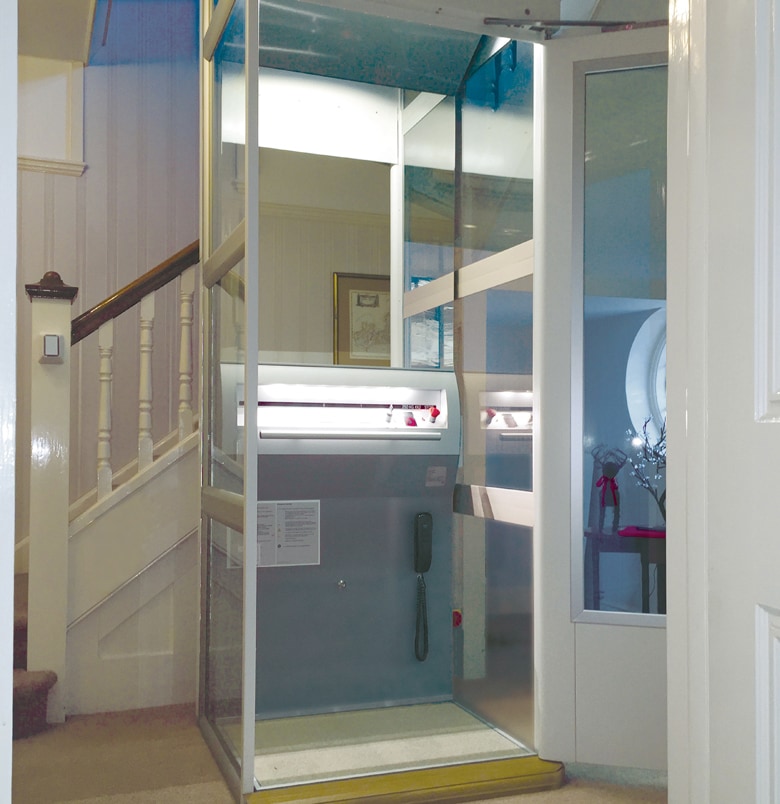

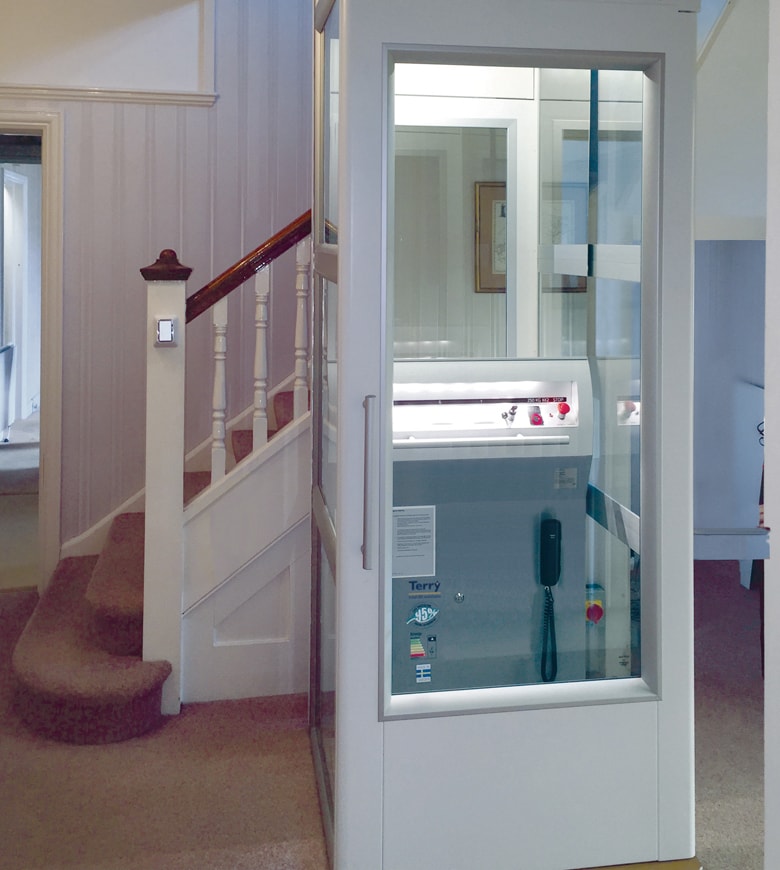

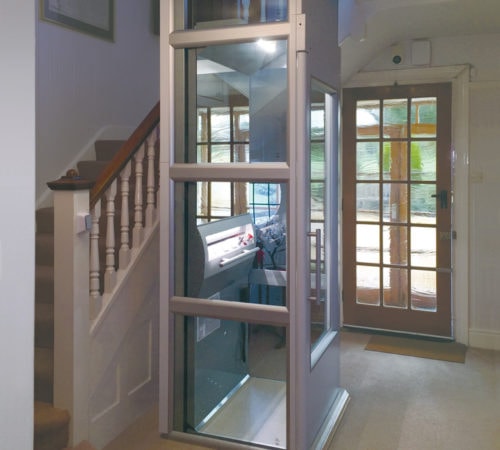

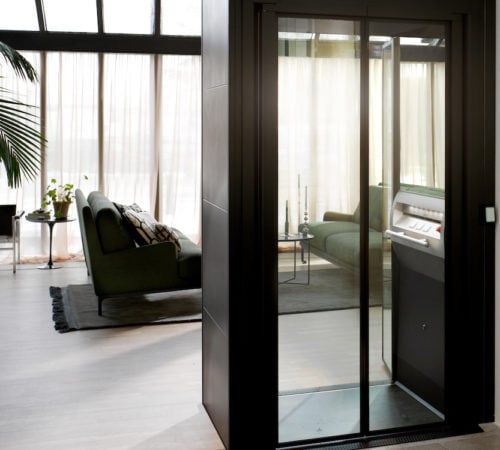

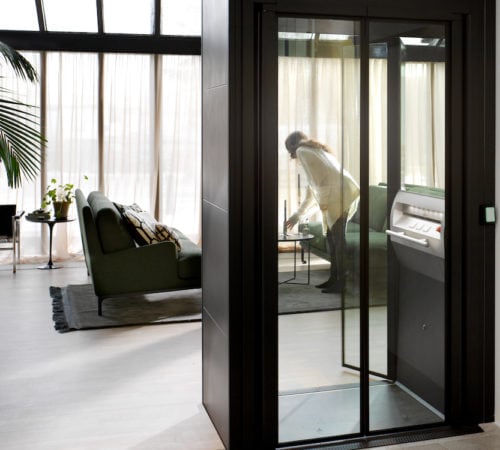

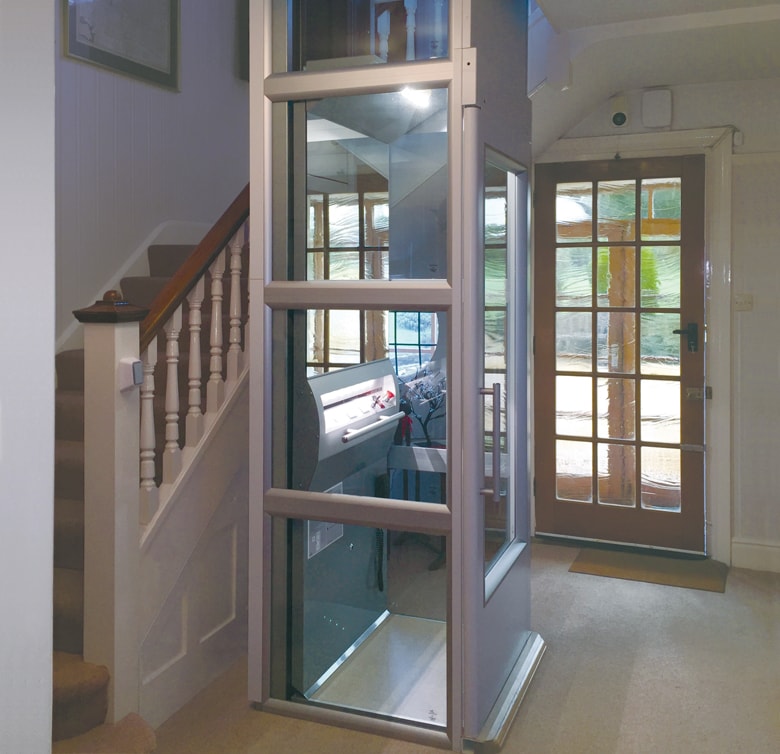

THL 400 Home Lift

Suitable for: Sitting IconStanding IconWheelchair Icon

It may be compact but this platform lift still packs a punch.  The THL 400 home lift is efficient on space and generous on design.

It can be installed in almost any home, even when space is limited.

Available in three sizes, the THL 400 can accommodate up to two people or a wheelchair user.

An elegant and contemporary home lift, the THL 400 can be personalised with a range of colours, finishes, and with stylish touches, such as glass walls.

This space-saving lift will quickly become an integral feature of your home, providing comfort and reassurance, both now and in the future.

By choosing this modern and versatile lift you can maximise the full potential of your home, for many years to come.

Key Features

Compact – making it easy to install into almost any home

Personalise – over 200 colours, four glass types and eight floor options allow you to customise your lift

Versatile – can accommodate a wheelchair user

Quick installation – requires minimal building work

Cost effective – low maintenance and operating costs

Environmentally friendly – low energy consumption and more than 95% of the parts are recyclable

Technical Specification

Lift Size: Three sizes are available, ranging from 840 x 880 mm to 1340 x 930 mm (external dimensions)

Number of Floors/Travel: Travel height 250 – 13 000 mm. Two - six floors.

Usage & Suitability: Internal use. Can accommodate up to two people standing or a wheelchair user.

Technical Compliance: European Machinery Directive 2006/42/EC European standard EN 81-41

Load Capacity: 250kg / 2 people

Installation: Recessed installation 50mm below floor. Installed directly on the floor with 50mm ramp.

Operation: Hold to run (press and hold). One-touch call for landing control.

Power Supply: 1-phase 230V 50Hz/6.6A/16A slow. Battery-powered emergency lowering

Low voltage control system: 24V

Motor: 1.5kW

Drive System: Patented screw/nut system

Speed: 0.15 m/s

Warranty: 12 months parts and labour only

Optional Extras

Choose from 200 RAL colours. Traffic white RAL 9016 as standard.

Tinted glass. Clear glass as standard

Choose from eight vinyl floor coverings, including Light Grey and Bolson Graphic
