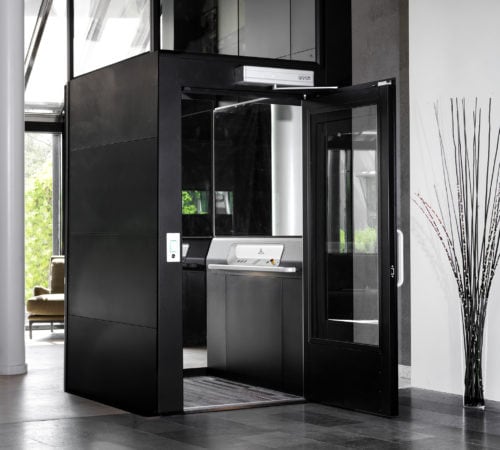

THL 600 Home Lift

Suitable for: Sitting IconStanding IconWheelchair IconWheelchair + attendant Icon

The THL 600 home lift combines style and practicality.  Whether it’s creating a ‘lifetime’ home or simply adding a touch of luxury to your interior, the THL 600 meets every desire for space, elegance and accessibility.

Available in different sizes this home lift can accommodate up to five people.  It can also provide wheelchair access for a wheelchair user and an attendant.

This versatility is combined with a plethora of design options, making it a stylish and decorative addition to your home.

The THL 600 can be customised with glass walls, a variety of RAL colours and different floor coverings, in order to complement your home.

Manufactured to a high-quality standard using patented technology, the THL 600 is sure to have a positive impact on your life by providing you and your family with convenient access to every part of your home.

Product Highlights

Flexible – custom options allow you to personalise your lift

Versatile – can accommodate a wheelchair user

Unobtrusive – with a quiet and smooth operation

Quick installation – the lift can be installed by our engineers in just a couple of days

Economical – low operation and maintenance costs

Environmentally friendly – ‘A’ rated energy consumption and more than 95% of the parts are recyclable

Technical Specification

Lift Size: Five sizes are available, ranging from 966 x 880 mm to 1466 x 1450 mm (external dimensions)

Number of Floors/Travel: Travel height 250 – 15 000 mm. Two – six floors.

Usage & Suitability: Internal use. Up to five people standing. Can also cater for wheelchair users and those accompanied by an attendant.

Technical Compliance: European Machinery Directive 2006/42/EC European standard EN 81-41

Load Capacity: 250-400 kg / 2-5 persons

Installation: Recessed installation 37mm below floor. Installed directly on the floor with a ramp.

Operation: Hold to run (press and hold). One-touch call for landing control.

Power Supply: 1-phase 230 V 50 Hz/9 A/16 A slow // 3-phase 230 V 50 Hz/9 A/16 A slow // 3-phase 400 V 50 Hz/5.2 A/16 A slow. Battery-powered emergency lowering

Low voltage control system: 24V

Motor: 2.2kW

Drive System: Patented screw/nut system

Speed: 0.15 m/s

Warranty: 12 months parts and labour only

Options

Available in 11 RAL colours. Traffic white RAL 9016 as standard

Tinted glass. Clear glass as standard

Choose from six shades of vinyl flooring and carpet, including Bolon Sisal Plain Sand and Carpet Elephant

Half-height door available – a useful option if you require an open shaft or if the head space is low
