Harmony FE Home Lift

Suitable for: Sitting IconStanding IconWheelchair IconWheelchair + attendant Icon

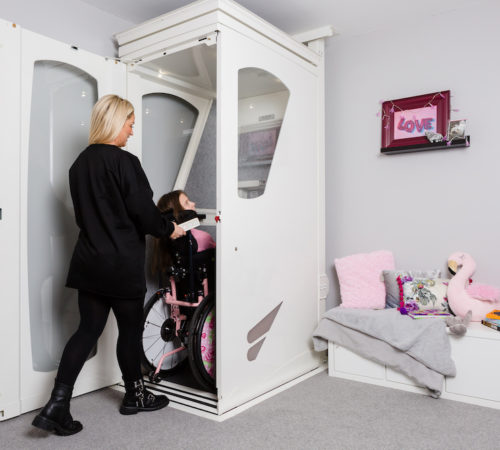

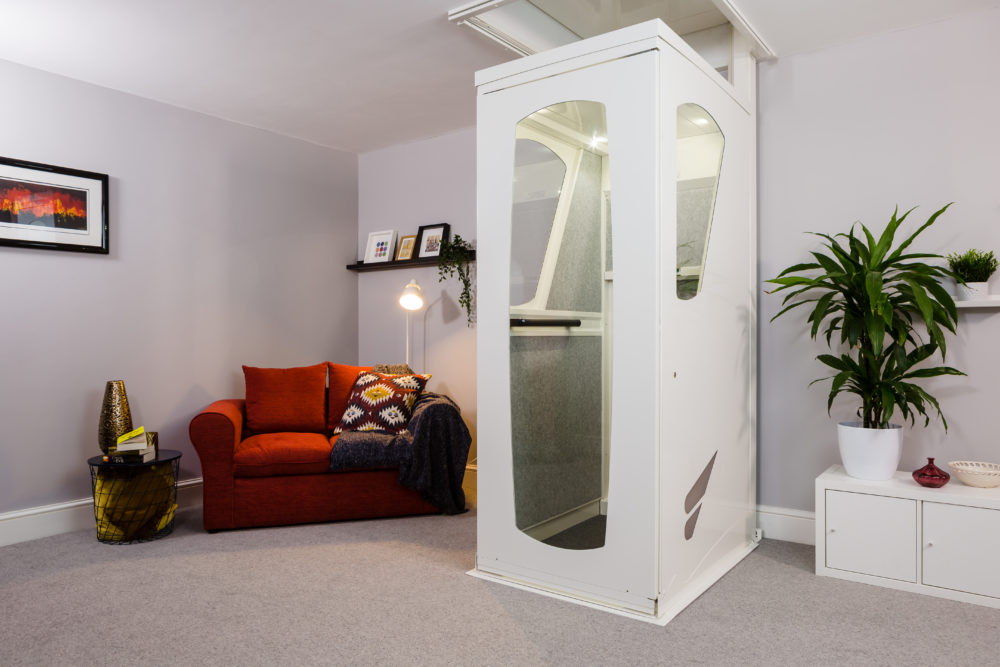

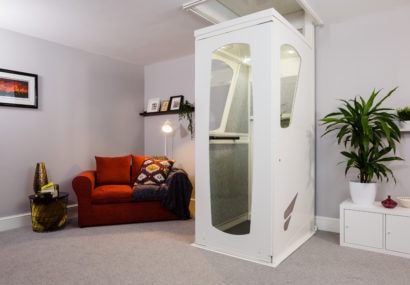

The Harmony FE home lift is a stylish and versatile solution for ease of access around the home, whether you travel standing, seated, independently in a wheelchair, or in a wheelchair together with a carer.

Choose from three models – Compact, Standard and Longer Wider.  Optional extras and finishes are available so you can customise the lift to suit your requirements and complement your home.

The Compact model is ideal when you are looking for a simple, space-saving solution for moving between floors in your home. It is an affordable and versatile alternative to a stairlift.

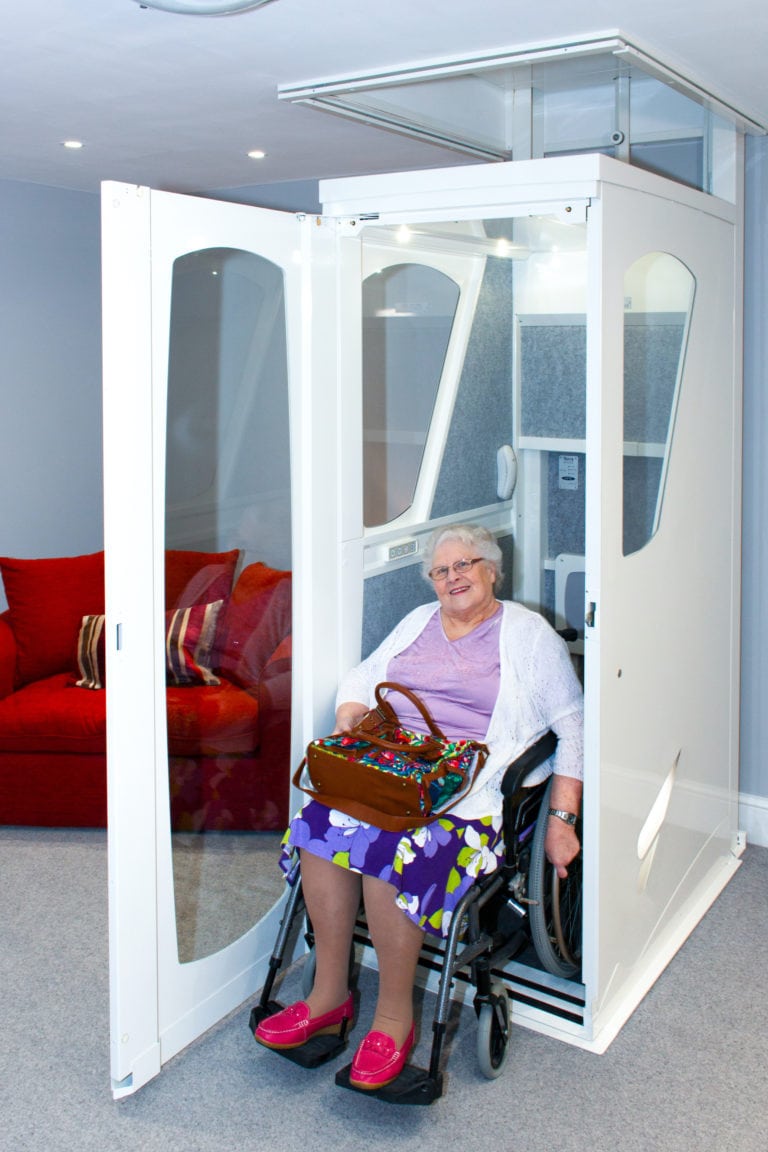

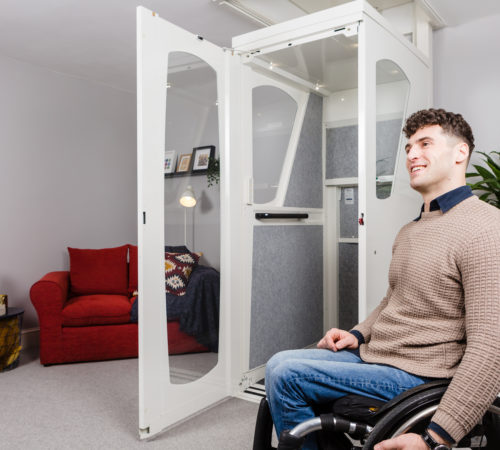

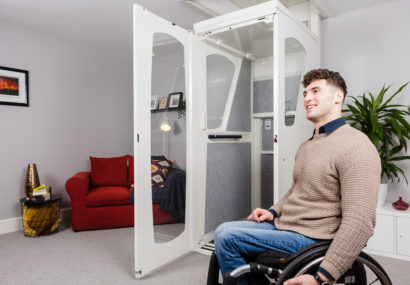

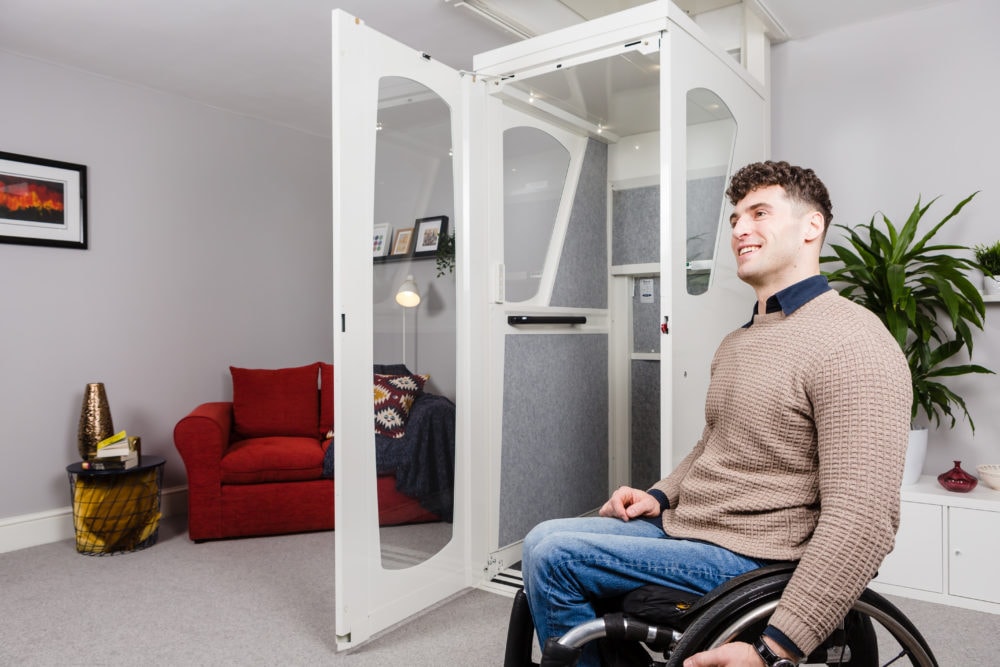

The Standard model features a slightly larger car, with enough space to accommodate a wheelchair user, with easy access and egress, and the option of a powered door.

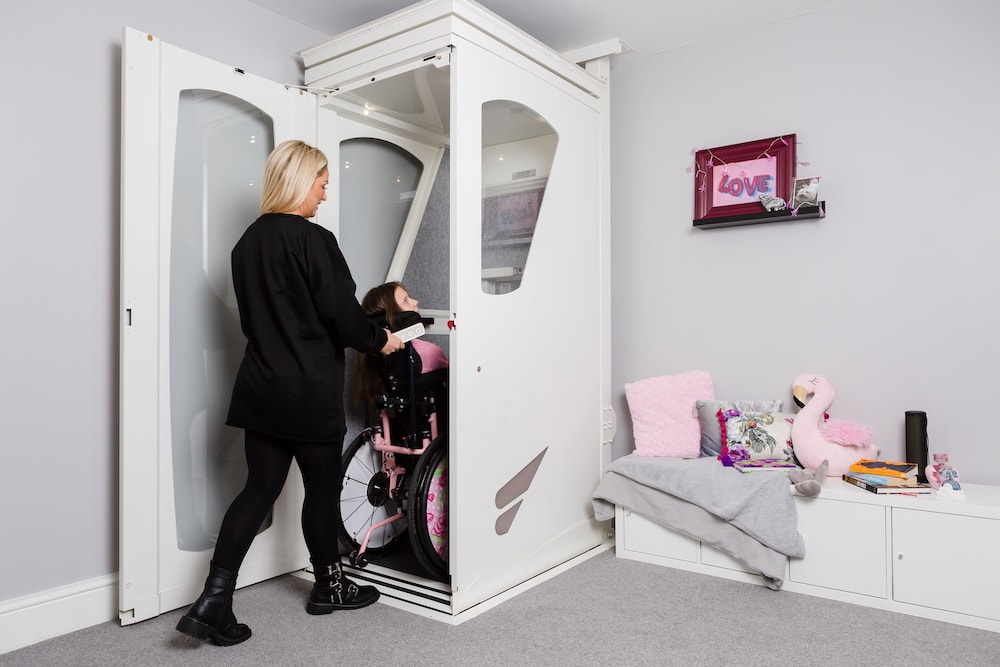

The Longer Wider model can accommodate a wheelchair user and a carer. It has the same features and options as the Standard model.

Why choose the Harmony FE?

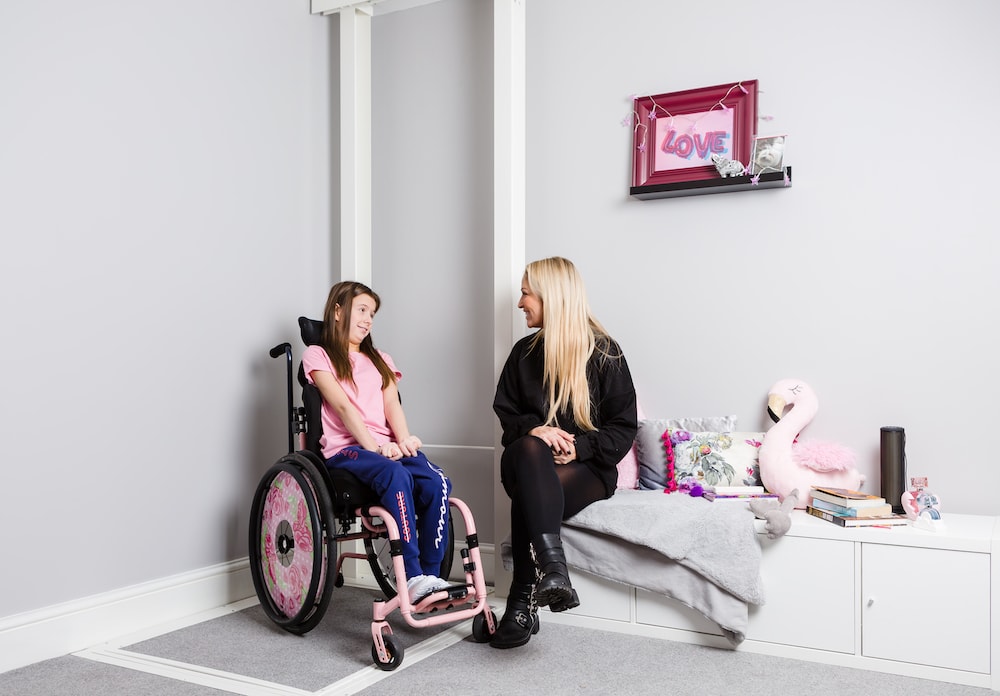

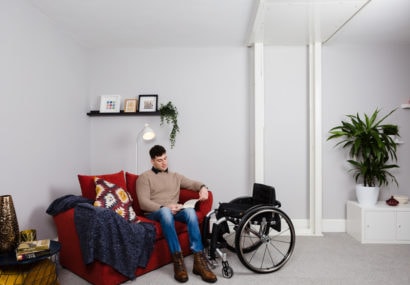

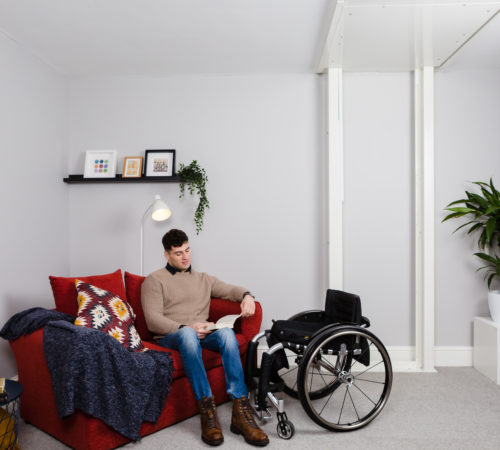

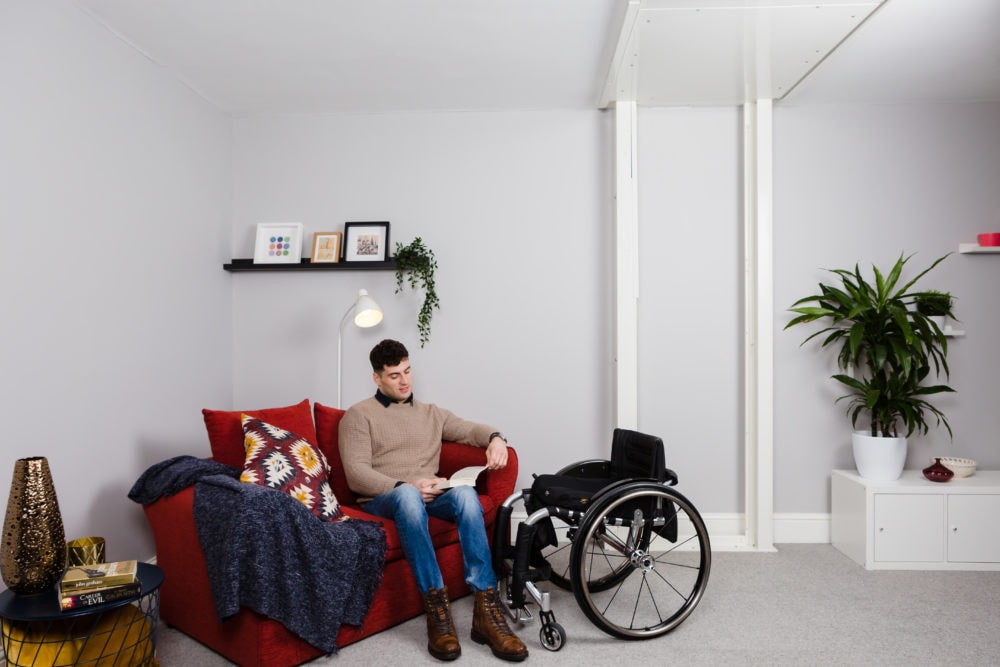

Manufactured in our factory in Cheshire, the Harmony FE  has been designed to minimise the lift footprint and maximise cabin floor space.  One of the reasons we can do this is because no lift shaft is required so the lift is unobtrusive.

The low cabin floor profile makes for easy wheelchair access while one-touch controls mean there’s no need for constant pressure, leaving the user/s free to relax as they travel between floors.



Peace of mind

The safety of you and your family is our priority. All essential safety features come with the Harmony FE Homelift as standard.

The lift has pressure sensitive safety surfaces, which stop it gently if it meets an obstruction above or below. If there is a power failure, the lift’s battery back-up system will take the user safely back to the ground floor.

Fire safety is an important consideration. The Harmony FE Homelift maintains fire and smoke protection between the floors, whether it is parked upstairs or downstairs.

For peace of mind, knowing your lift is safe, it is important that your installer can provide certification showing your lift complies with BS5900:2012

Standard Features

Powered door

Full height glazed door

Safety glass vision panels

Gloss white exterior and interior trims

Light grey carpet covered interior panels

Four dimmable LED lights

Telephone

Charcoal carpeted floor

Wireless call stations on both landings

Wireless smoke/ heat alarm

Emergency lowering system

Technical Specification

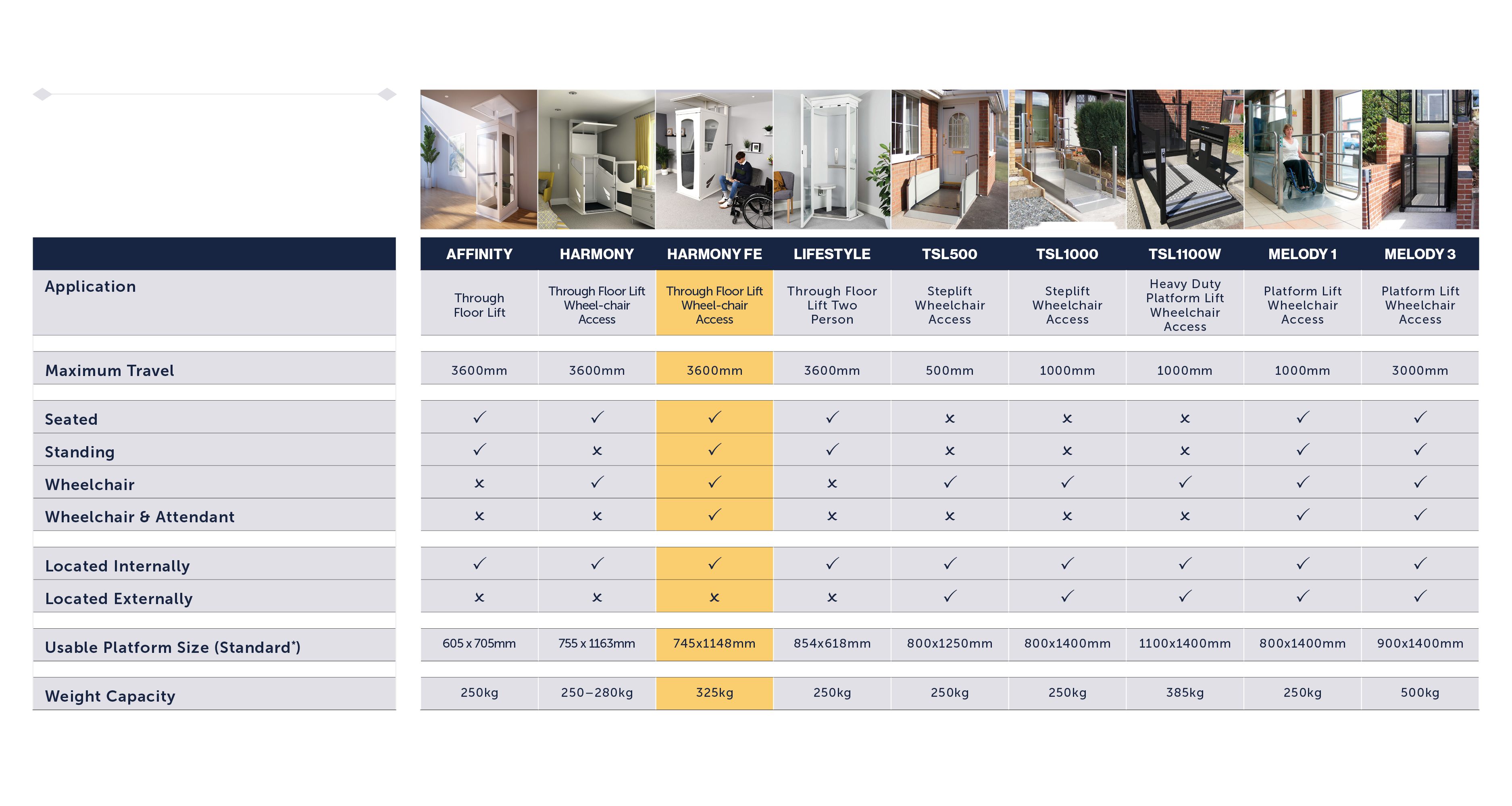

Lift Size: Available in four sizes, ranging from Harmony FE C 910mm (w) x 914mm (l) to Harmony FE LW 1045mm (w) x 1435mm (l) (external dimensions)

Number of Floors/Travel: Two floors. Max. 3.6m

Usage & Suitability: For internal domestic use. Suitable for all requirements.

Technical Compliance: 30 minute fire protection to the requirements of BS 5900:2012. Compliant with Machinery Directive 2006/42/EC and CIBSE Guide D recommendations.

Load Capacity: 250kg (39 stone). Maximum capacity 325kg (51 stone).

Installation: Two days

Operation: One-touch controls. Door open button on the external side of the lift cabin, plus easy to use adjustable wireless controls

Power Supply: 240v dedicated power supply, with full battery backup

Drive System: Hydraulic drive system

Speed: 0.06 m/sec

Warranty: 12 months warranty including one service visit

Optional Extras

Upholstered fold up seat

Joystick cabin control

Hand-held remote control

Radio isolation fob

Handrail

Grab points

Mirror

LED cabin side lighting

Choice of carpet colour

Cabin available in alternative RAL colours

Extended warranties including service visits

No-fuss installation

Installation of the Harmony FE Homelift is quick and simple. The lift does not require a shaft, so the disruption to your home is minimal.

Our trained surveyor will survey your home and provide you with a written, no obligation quotation, free of charge. Should you decide to proceed, we can carry out all the necessary preparatory works and manage the full installation hassle-free. This takes less than two days.
