Harmony Home Lift

Suitable for: Sitting IconWheelchair Icon

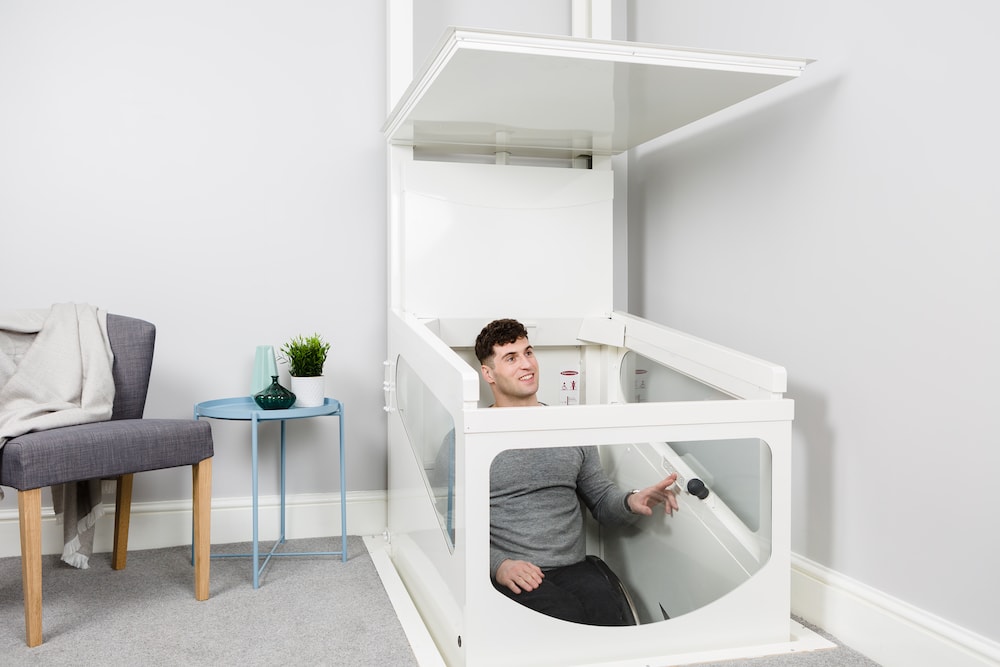

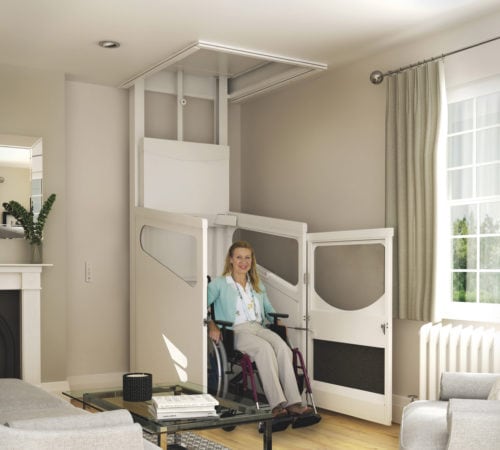

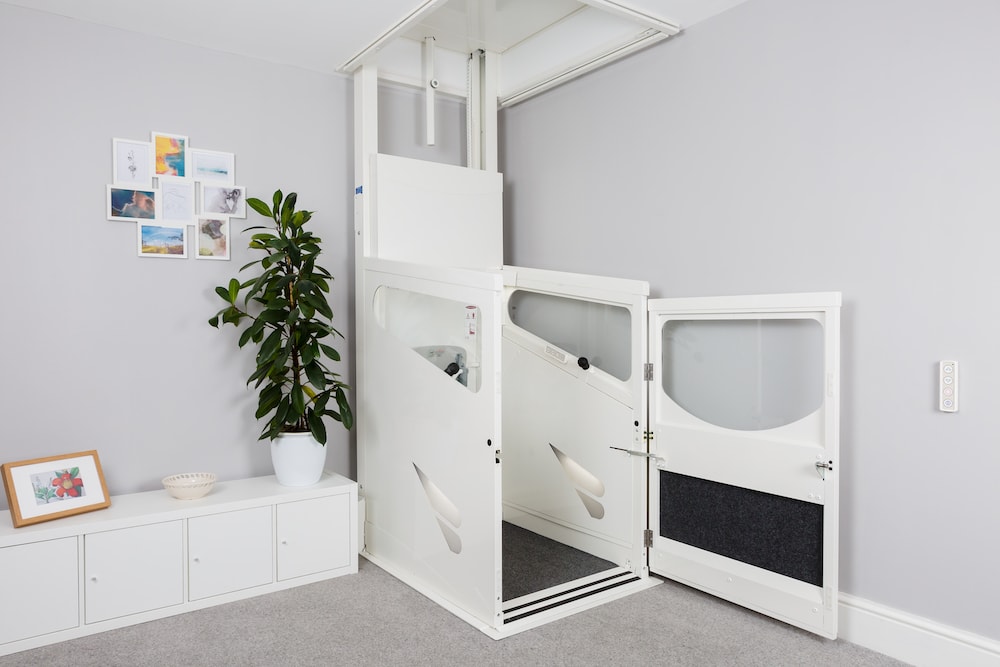

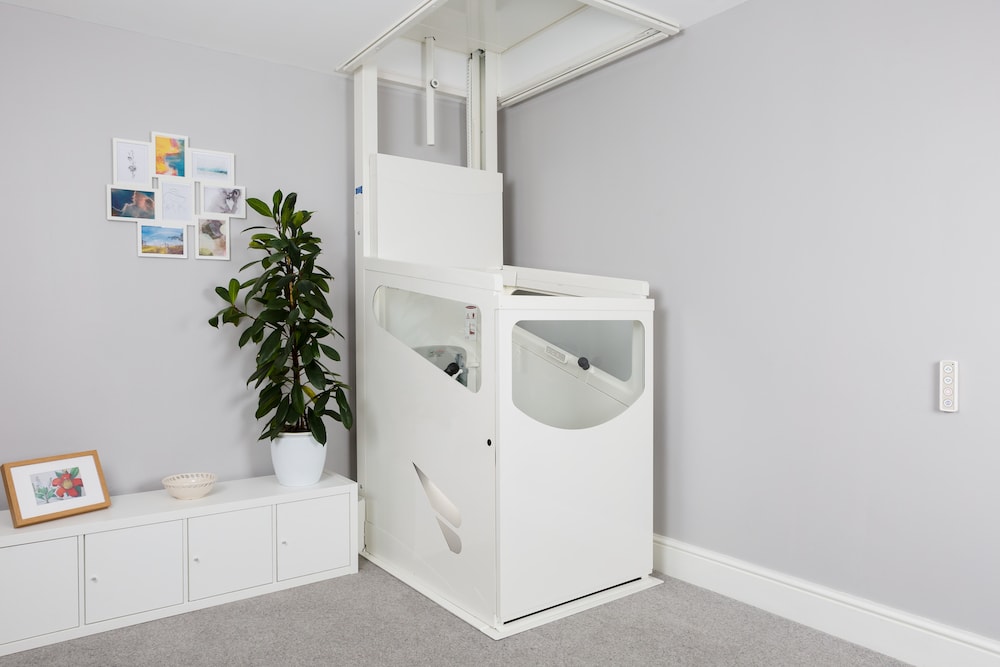

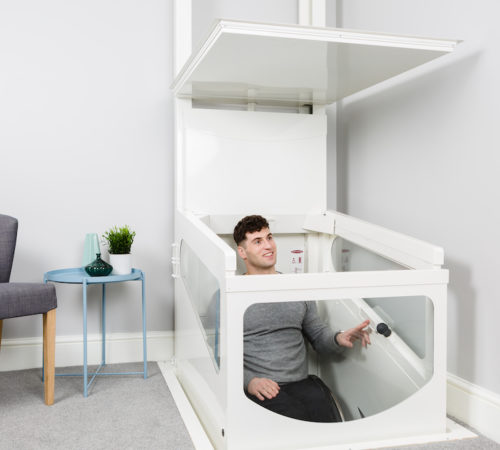

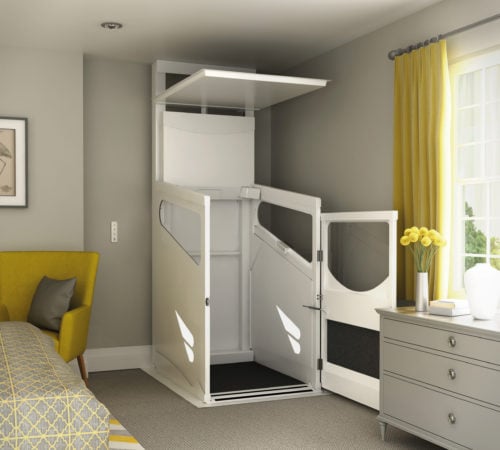

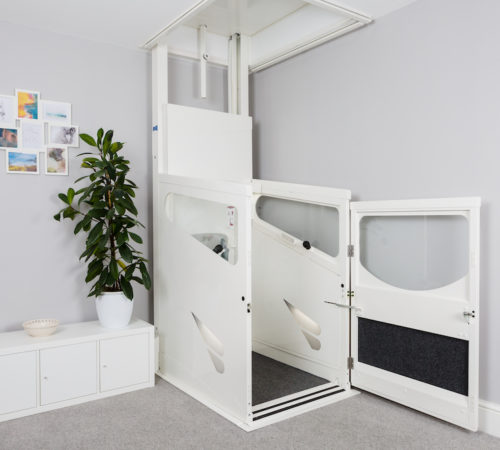

Whether travelling seated in a wheelchair or on the optional fold-down seat, the Harmony unenclosed through floor home lift will allow you to move freely between floors, safely, smoothly and quietly.

Practical and sleek, the lift is available in a wide range of sizes, each designed to maximise space inside the cabin.   With the option to customise it with different colours, materials and accessories.

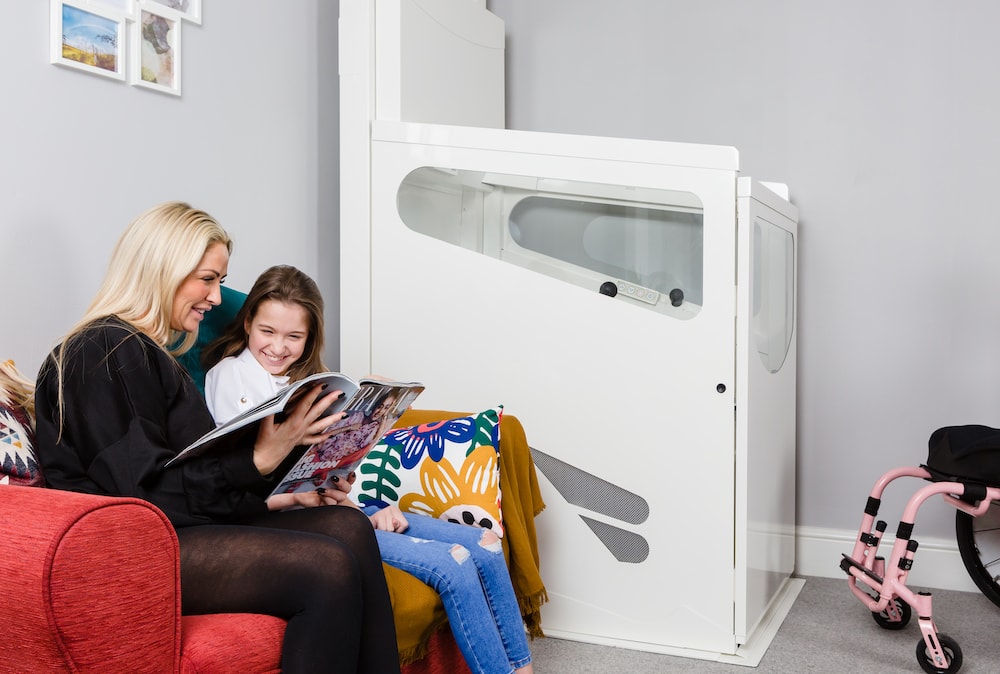

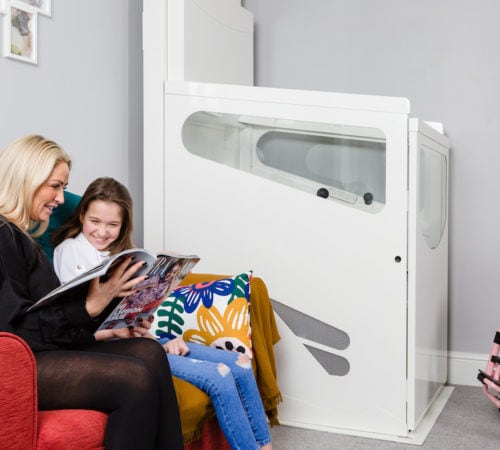

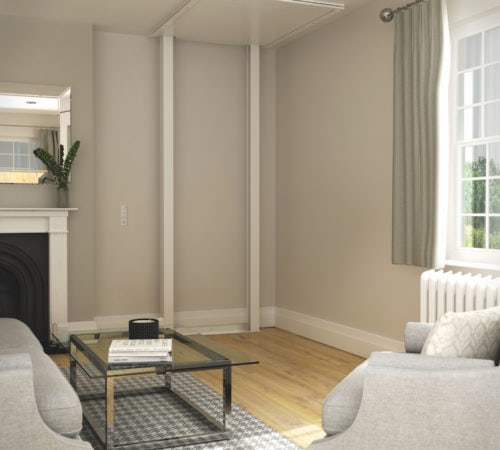

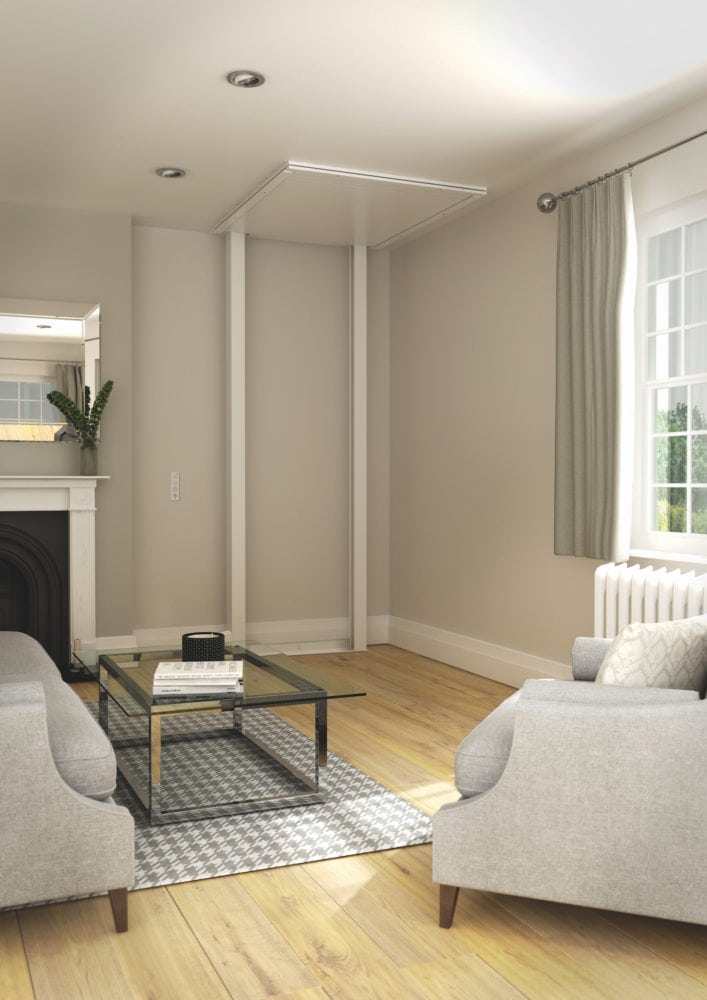

With no lift shaft required, the Harmony home lift can be fitted almost anywhere in your home.  It requires only minimal headroom on the first floor and it can be installed against non-load bearing walls.

We will take care of everything

Purchasing and having your Harmony home lift installed is far less complicated than you might think. We will survey your home and provide you with a written quotation.  After your decision to proceed, we will do all the necessary preparation work.  The installation itself takes less than two days.

Key Features

Size, design and accessory options tailored to you

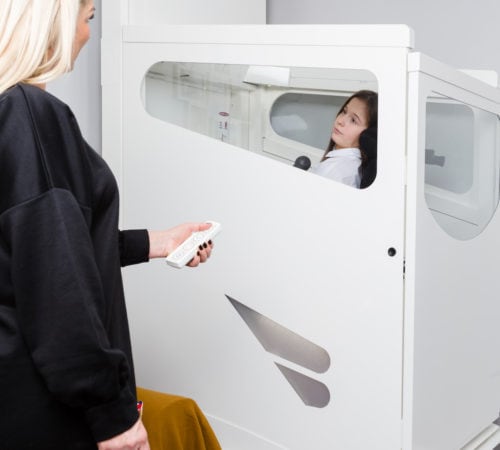

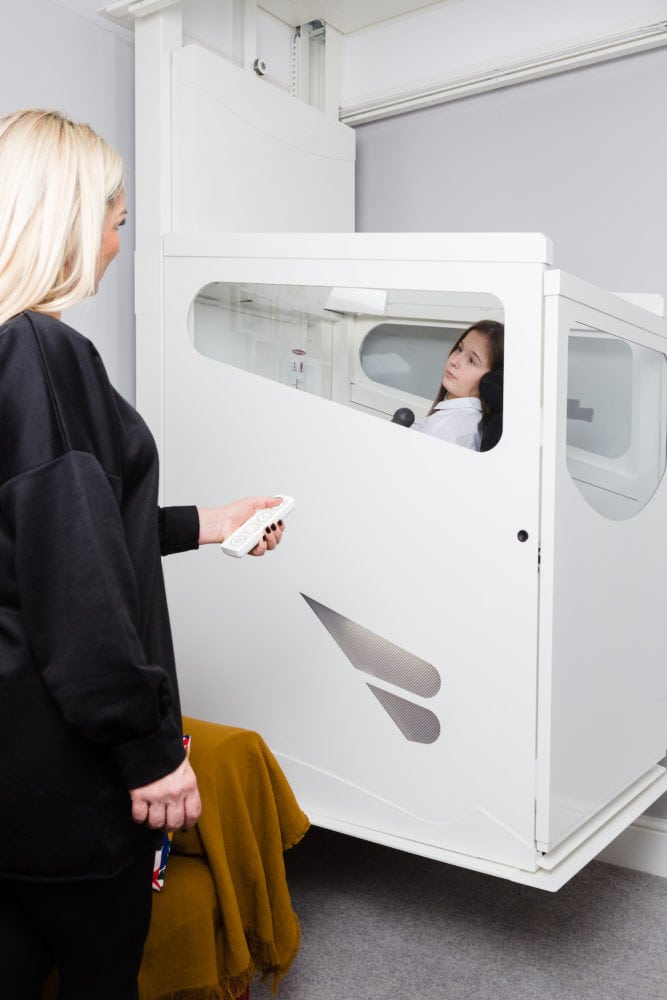

Radio wireless controls in car and at both doors

Safety glass vision panels

Safe edges and a pressure-sensitive safety surface stop the lift from moving if obstructed

Battery back-up for emergency lowering

Powered door available on wheelchair models

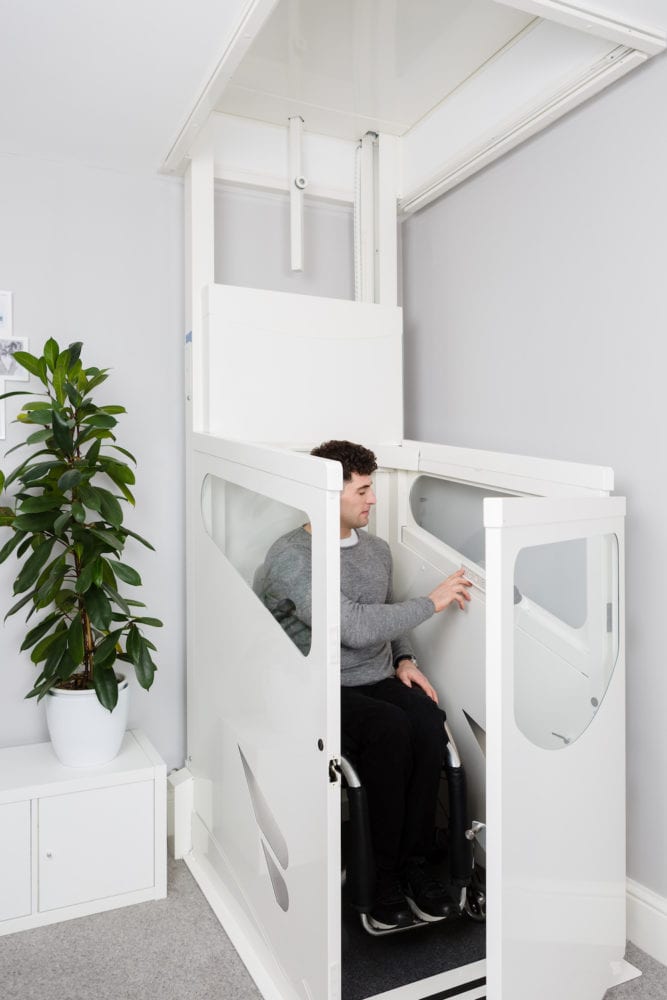

Low cabin floor profile makes for easy wheelchair access

30 minute fire/smoke integrity

Technical Specification

Lift Size: Available in four sizes, ranging from Harmony S - 920 (w) x 1265 (l) to Harmony LW – 1055 (w) x 1465 (l) (external dimensions)

Number of Floors/Travel: Minimum 2060mm. Maximum 3600mm.

Usage & Suitability: For internal domestic use. Suitable for all access requirements.

Technical Compliance: 30 minute fire protection to the requirements of BS 5900:2012. Compliant with Machinery Directive 2006/42/EC and CIBSE Guide D recommendations.

Load Capacity: Dependent on model selected - 250kg (39 stone) to 280kg (44 stone)

Installation: Two days

Operation: One-touch, easy to use adjustable wireless cabin and wall-mounted controls

Power Supply: 240v dedicated power supply, with full battery backup

Drive System: Hydraulic drive system

Speed: 0.06 m/sec

Warranty: 12 months warranty including one service visit

Optional Extras

A range of trim and carpet colours

Special colours and vinyl wraps

Folding seat (can be used as a
perch seat)

Perch seat

Telephone in the cabin

Hand held remote control

Grab handles

Joystick control

Cabin padding on three sides and
door

Mirror

Fob

Cabin side lighting

Extended warranty

No hassle installation

The installation of a through floor lift is straightforward and our expert installers at Terry Lifts will keep disruption to a minimum. Following the initial survey and decision to proceed, any necessary preparatory work will be undertaken and then the lift fitted in less than two days.

As space is always limited we have employed an ingenious car design and integral ramp so that the Harmony wheelchair lift is only fractionally larger on the outside than it is on the inside.
