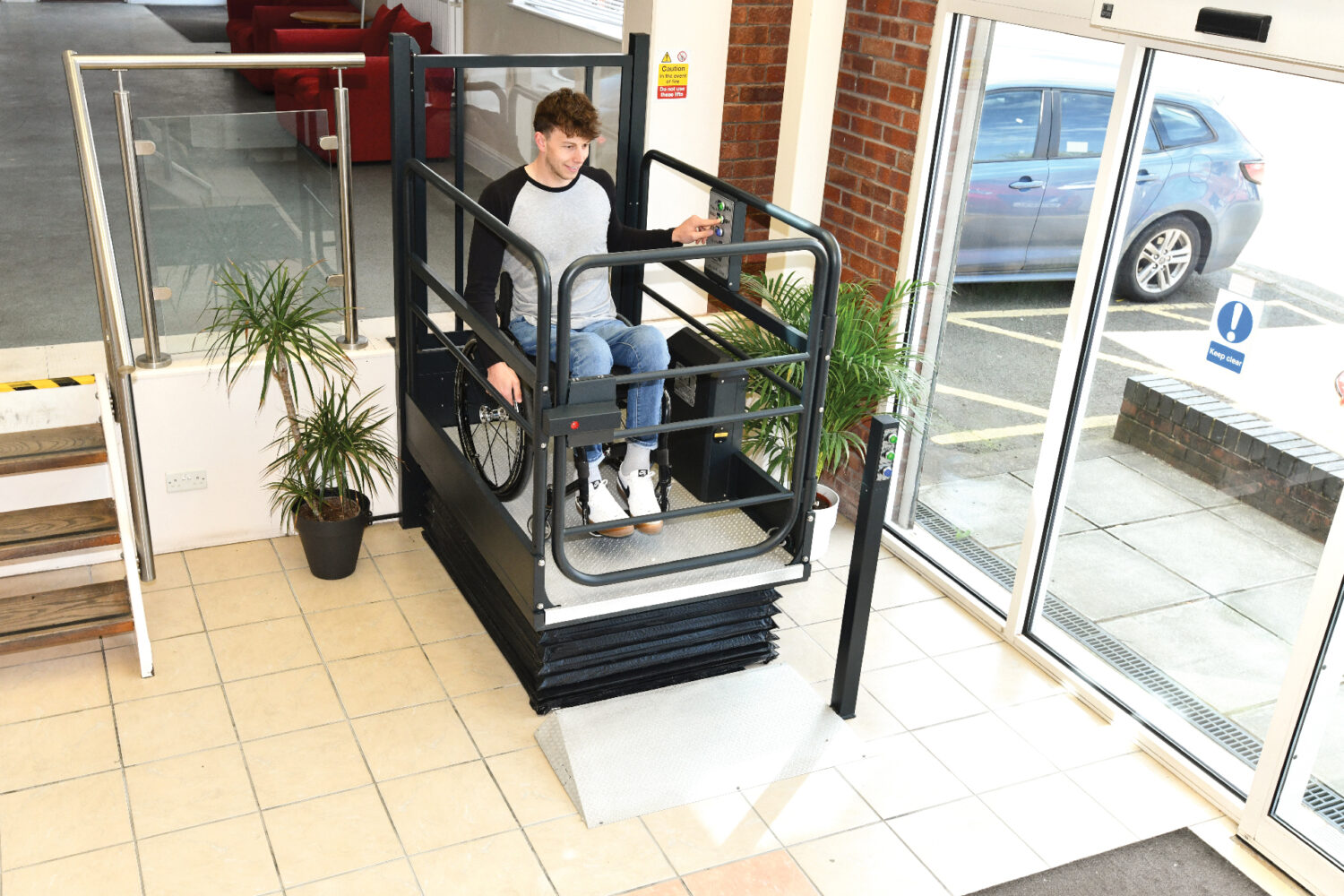

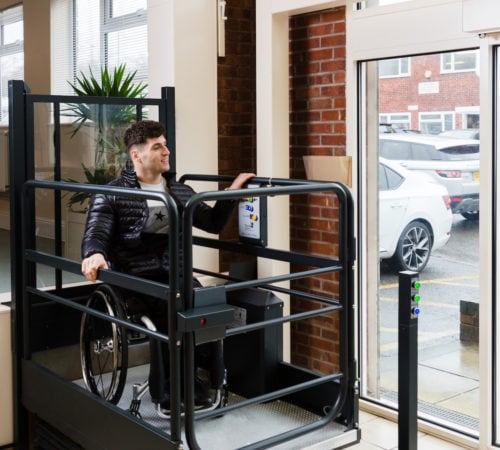

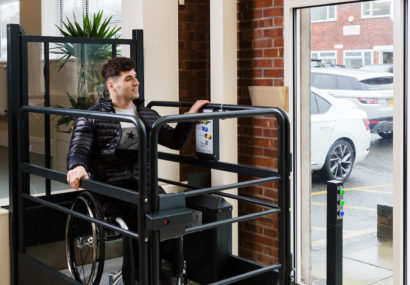

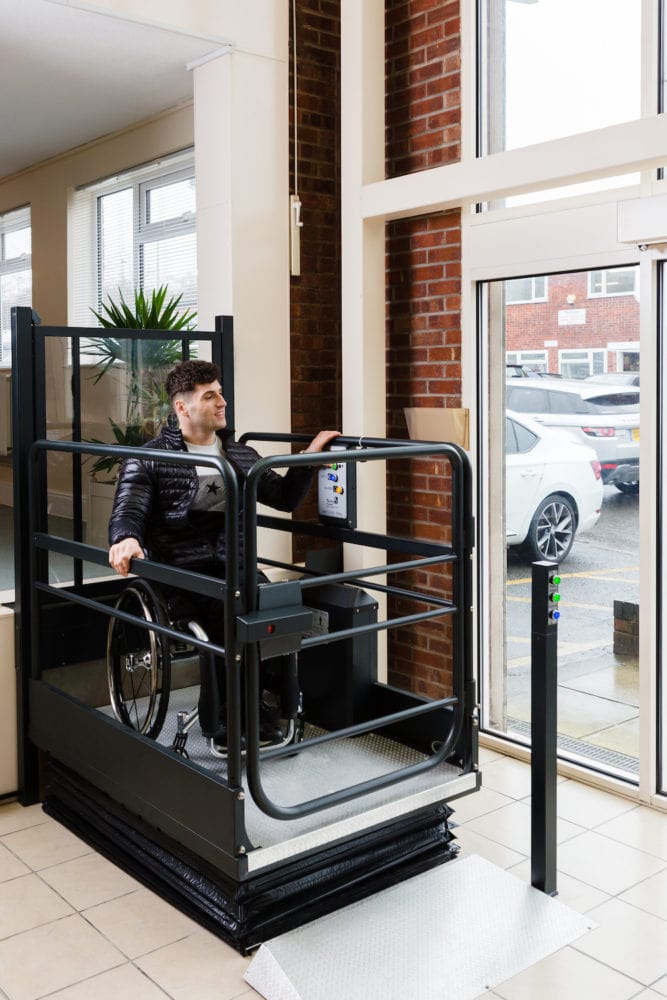

Melody 1 Platform Lift

Suitable for: Standing IconWheelchair IconWheelchair + attendant Icon

A truly versatile lift, the Melody 1 Platform Lift can provide domestic and public access for wheelchair users and people with impaired mobility.  It can be installed inside or outside the building or home, providing access for heights up to 1 metre.

Compact and user-friendly disabled access

Our Melody 1 Platform Lift is both functional and appealing. It has been designed to improve access where a wheelchair ramp is not a suitable option, due to lack of space or not enough length to achieve the required gradient. Melody 1 is free standing and compact, saving space and making it less obtrusive.


The design incorporates an external fixed ramp to eliminate the need for a pit, keeping building work to a minimum. Installed by our trained engineers in less than a day, it is a simple solution to disabled access into the home or a public building.

Key Features

Easy to use – convenient controls and shallow approach ramp

Reliable – battery back-up provides normal operation (up to 30 cycles) in case of power cut

Aesthetically pleasing – stainless steel finish as standard, it can also be customised from a range of paint finishes

Unobtrusive – state of the art hydraulic system provides a smooth and quiet operation

Safe – BS 6440:2011 and Machinery Directive compliant

Technical Specification

Lift Size: Internal platform dimension: 900 mm x 1400 mm (standard)

Number of Floors/Travel: Maximum travel: 1000mm

Usage & Suitability: For both domestic and public access use, internal and external locations. Providing safe access and egress for wheelchair users and people with impaired mobility

Technical Compliance: BS6440:2011 and Machinery Directive 2006/42/EC

Load Capacity: 250kg

Installation: Quick installation. External fixed ramp keeps building work to a minimum. Pit option available for internal use.

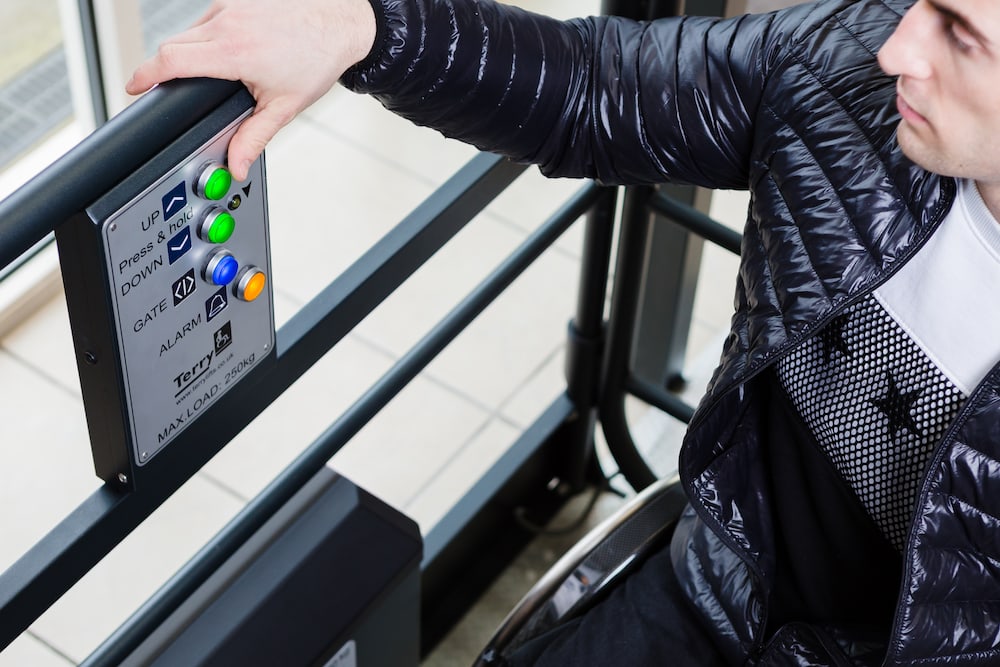

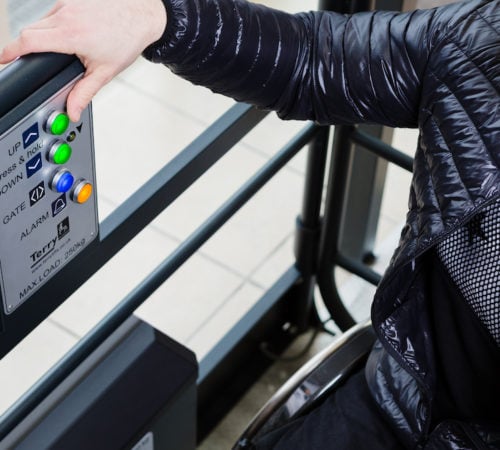

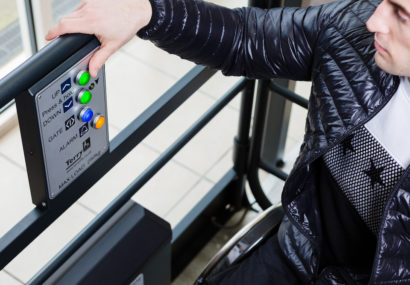

Operation: Easy to operate, illuminated constant pressure controls

Power Supply: 220/240 V AC~ 50/60 Hz (no dedicated supply or RCD required)

Drive System: 24 volt hydraulic scissor drive

Speed: 0.06 m/sec

Operating Temperature Range: -10 degrees Celsius to +40 degrees Celsius

Warranty: 12 months

Options

Security features: Radio enabler and radio isolate

Bridging Steps: for domestic applications only

Pit: available for internal use

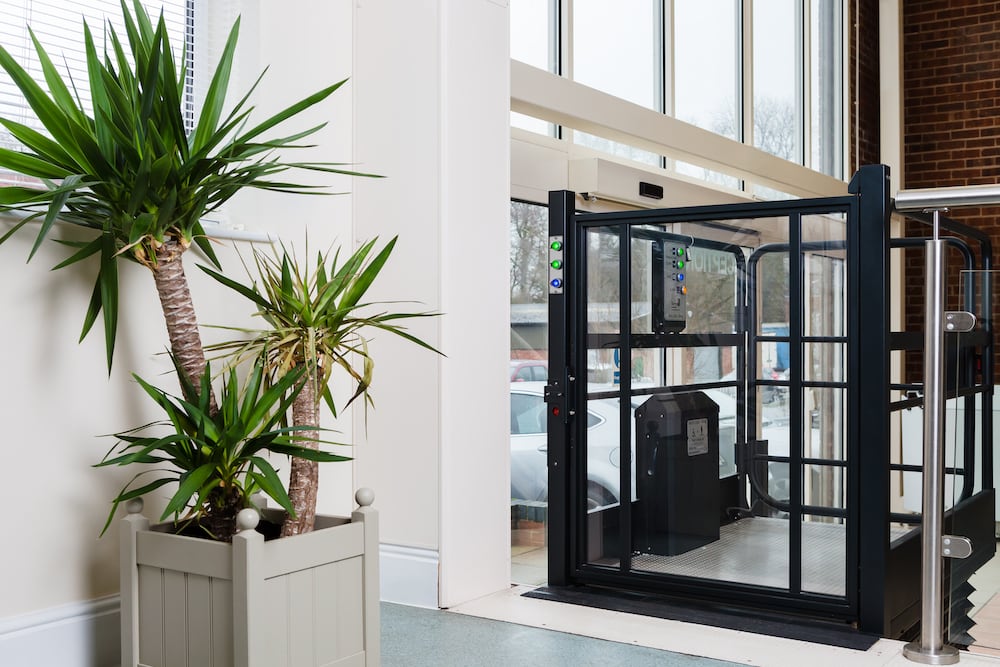

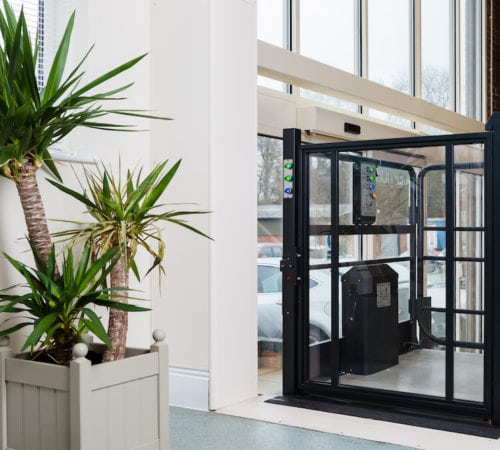

Polycarbonate infill panels: for gate and carriage sides

Upper level gate: As standard for public access. A requirement for domestic use when lifting height exceeds 290mm
