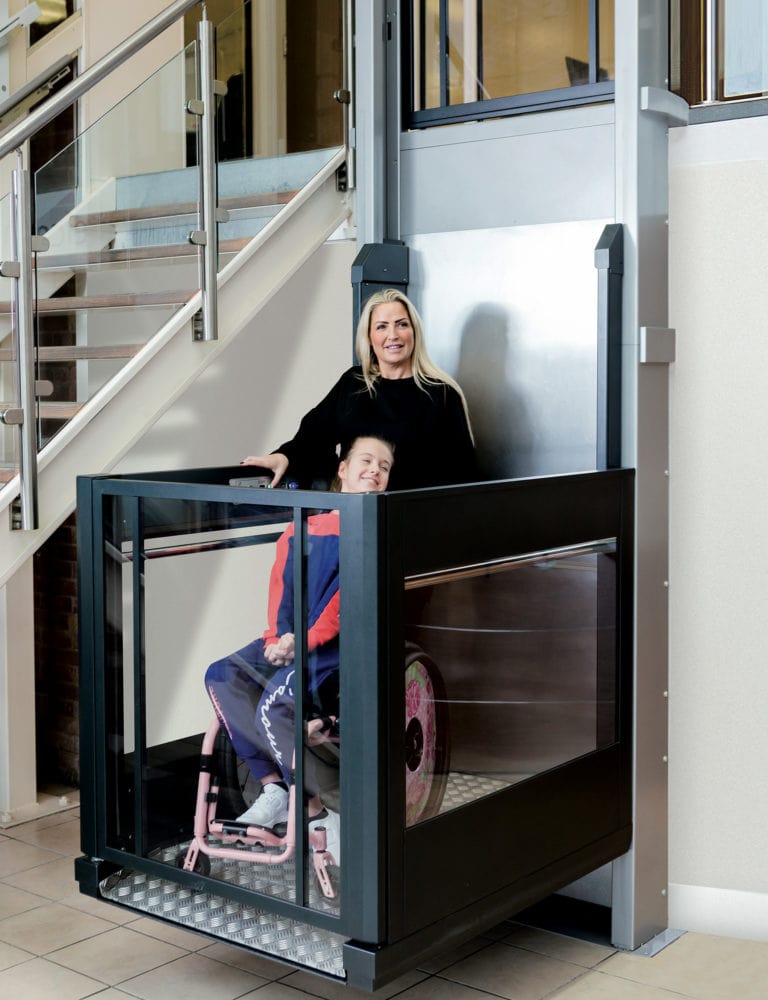

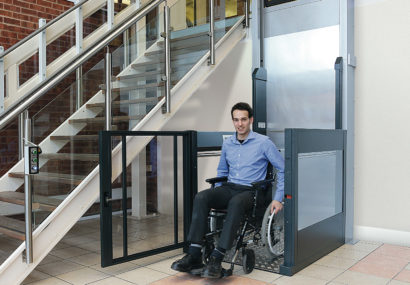

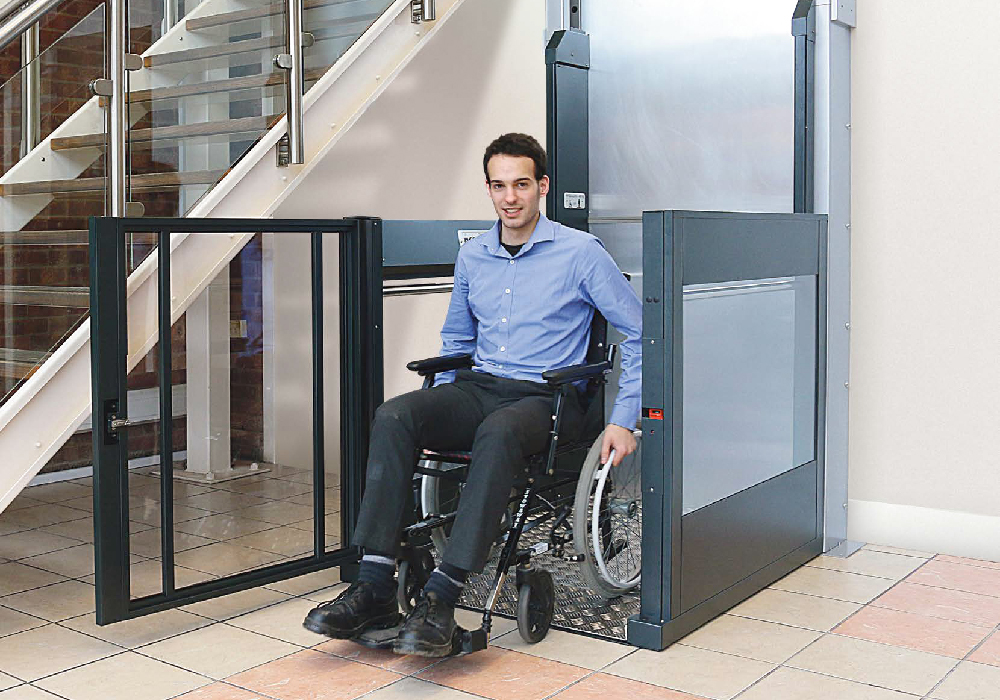

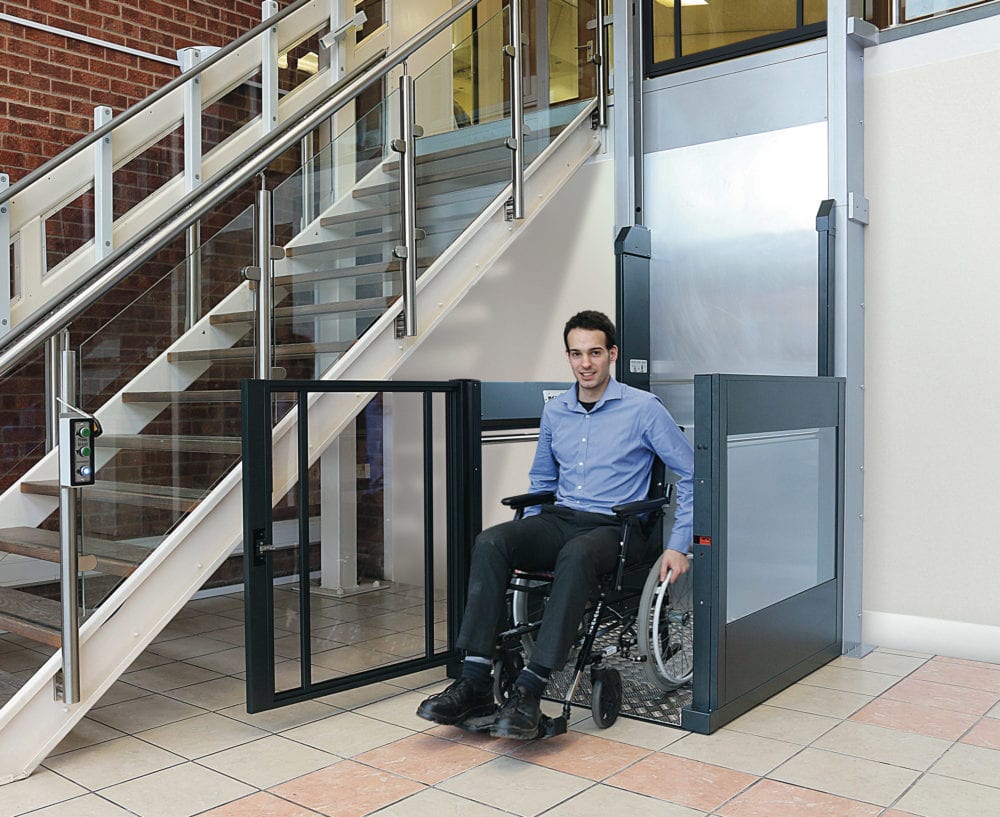

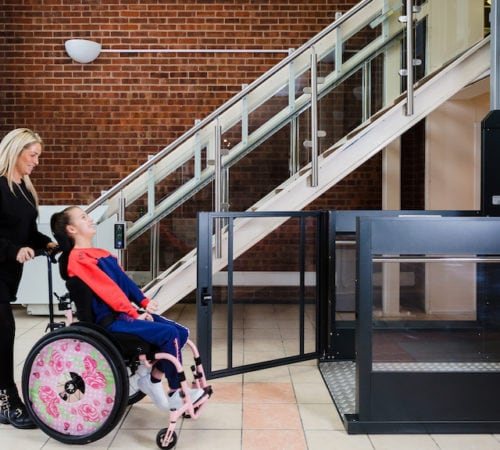

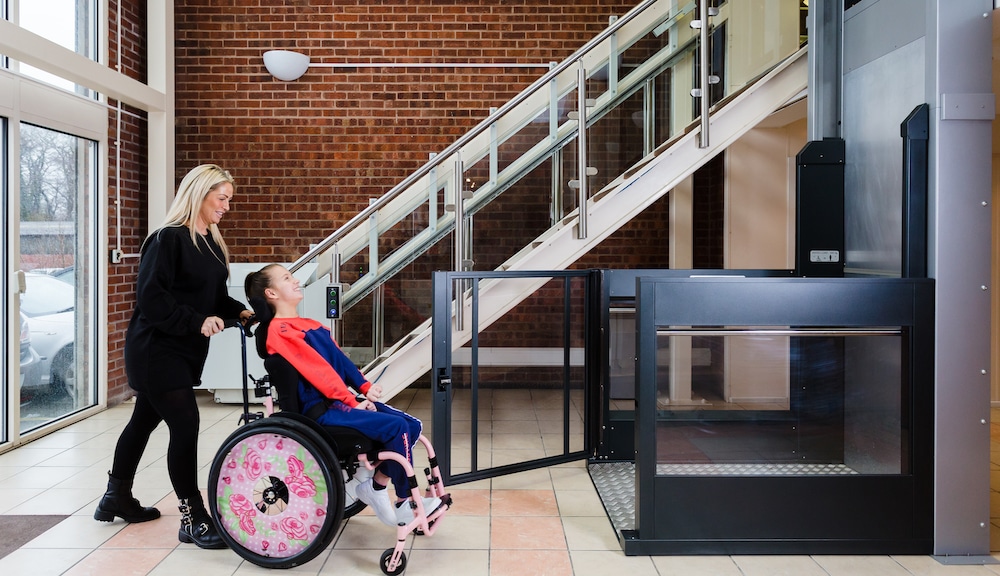

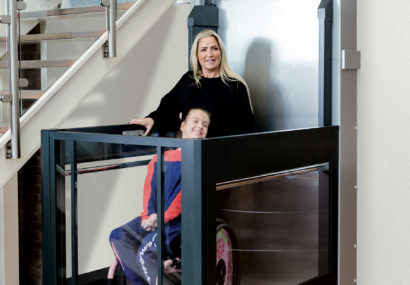

Melody 3 Vertical Platform Lift

Suitable for: Standing IconWheelchair IconWheelchair + attendant Icon

The Melody 3 Vertical Platform Lift  provides safe and easy access where stairs or steps would otherwise prevent or limit access to the home or public and commercial buildings.

The lift provides a maximum travel of three metres and is available in two platform sizes.  It can be installed inside or outside of building.

The Melody 3 is an aesthetically pleasing solution due to the attractive design and lack of a mast or support tower.

Customers and specifiers can also choose to customise the lift to enhance or complement its location, with the option of special paint colours and finishes.  The carriage and upper level landing gate are painted, with polycarbonate infills.  Please contact us for more details.

User safety and comfort are at the heart of the design. The lift is equipped with sensitive safety surfaces which protect against entrapment below the platform.  It is also complete with battery back up for emergency lowering. The carriage and landing gate can be powered for even easier access and egress.

Supporting Lift Users and Building Owners

For public access, special emphasis has been placed on the needs of both the lift user and the building owner. The lift is user-friendly and comes with the added option of automatic gates, providing easy independent access to wheelchair users while interlocking gates prevent opening during  travel.

Its unique design means that there is no need for a support mast to one side, resulting in an unobtrusive lift that effectively blends in with the design and fabric of the building.

The Melody 3 facilitates compliance with the Equality Act 2010.

Key Features

Quick installation – minimal building work required

Minimal building work – supplied with an integral ramp

Automatic gates option – choose for even easier access and egress

Safe & compliant – complies with BS6440:2011, Part M of the Building Regulations and the 2006/42/EC Machinery Directive

Flexible – available in two platform sizes

Technical Specification

Lift Size: Available in two platform sizes. 900mm x 1400mm (standard) and 1100mm x 1400mm.

Number of Floors/Travel: Maximum travel: 3m (public access restricted to 2m). Minimum travel: 750mm (consider our Melody 1 for lower lift height)

Usage & Suitability: Provides wheelchair access inside and outside of the building and can accommodate virtually any manual or powered wheelchair. The design also allows for a carer to travel with the user.

Technical Compliance: 2006/42/EC Machinery Directive, CE Mark, BS6440 (2011) and Part M.

Load Capacity: 500kg up to 2m travel or 440kg up to 3m

Installation: Quick installation within two days. Integral ramp keeps building work to a minimum. No pit required.

Operation: Constant pressure

Power Supply: Dedicated 240V AC. 50 Hz. 13A single phase RCD protected supply. Battery back-up for emergency lowering.

Drive System: Direct acting hydraulic drive system

Speed: 0.06 m/sec

Operating Temperature Range: -10 degrees Celsius to +40 degrees Celsius

Warranty: 12 months

Options

Powered platform and landing gates

Wider 1100 mm x 1400 mm platform

Dual car controls

Full battery back up

Stainless Steel Kit: All handrail posts, kicking strips, platform trims, upper handrail panels and covers

Pit Installation (indoor installation only)

Remote Enabler or Remote Isolate (extra fobs available)

Stand-alone call station in post - stainless steel or painted finish

Wall mounted surface or flush call stations

Special paint finishes

Various non-slip vinyl floor coverings

Platform illumination
