S7 SR Inclined Platform Stair Lift

Suitable for: Wheelchair Icon

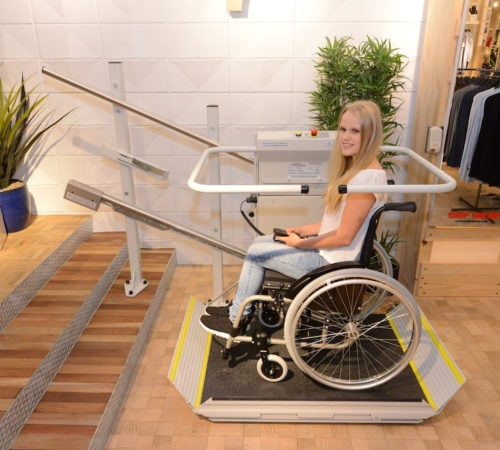

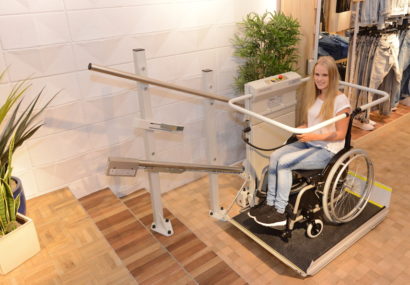

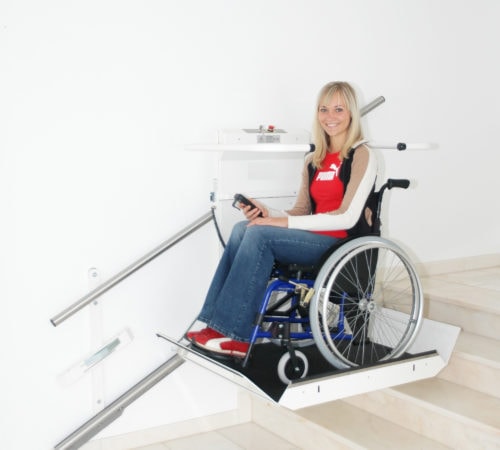

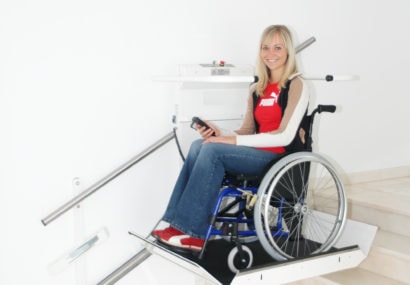

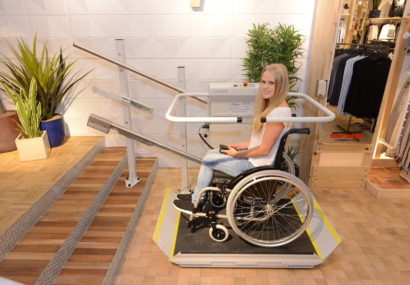

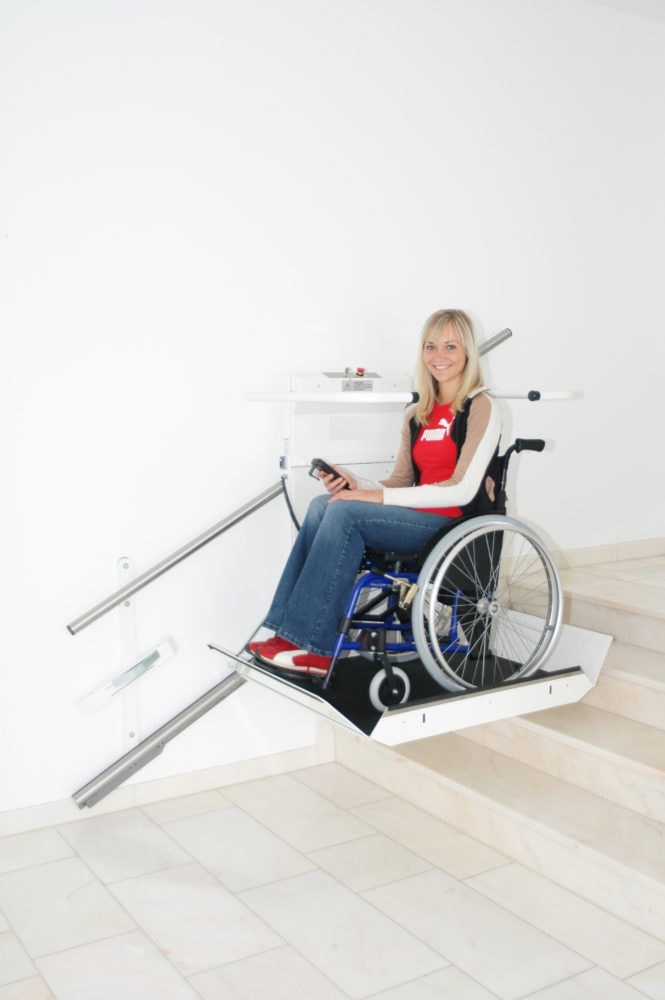

Simple and functional, the S7 SR Inclined Platform Stair Lift focuses on ease of use and safety.  It provides wheelchair and disabled access for public and commercial buildings, and the home.

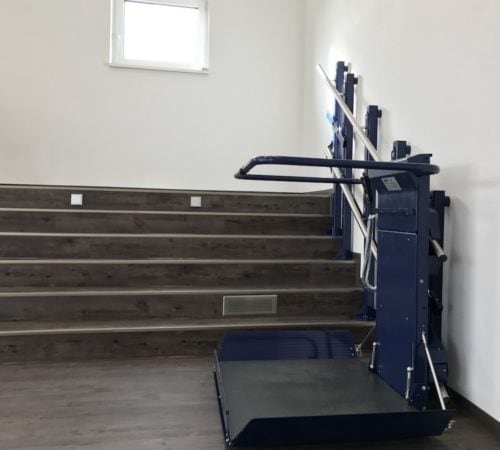

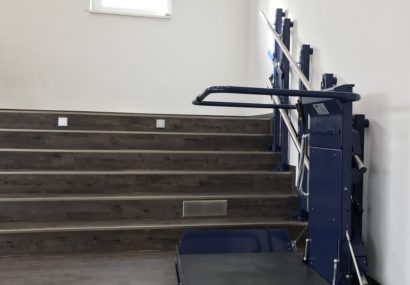

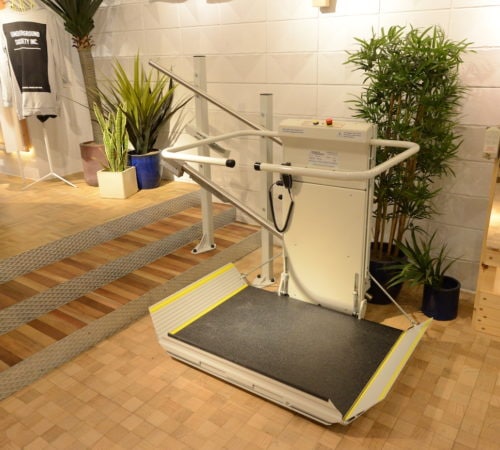

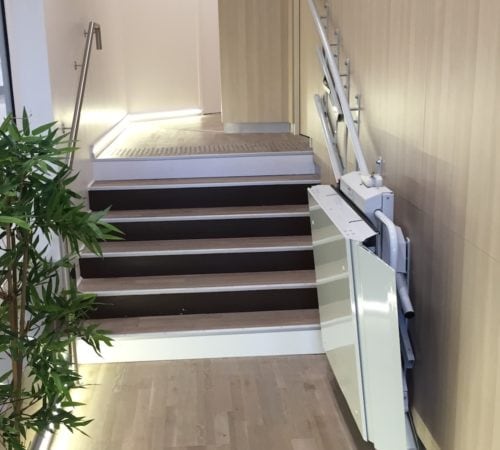

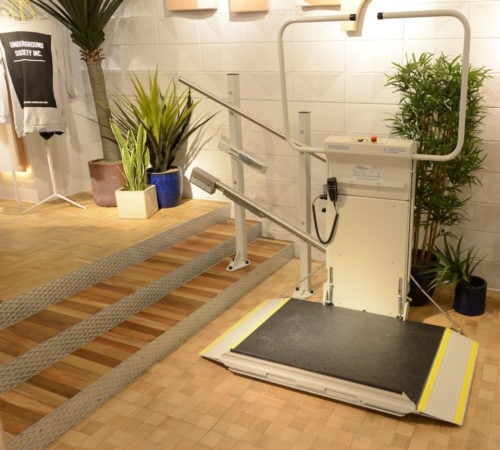

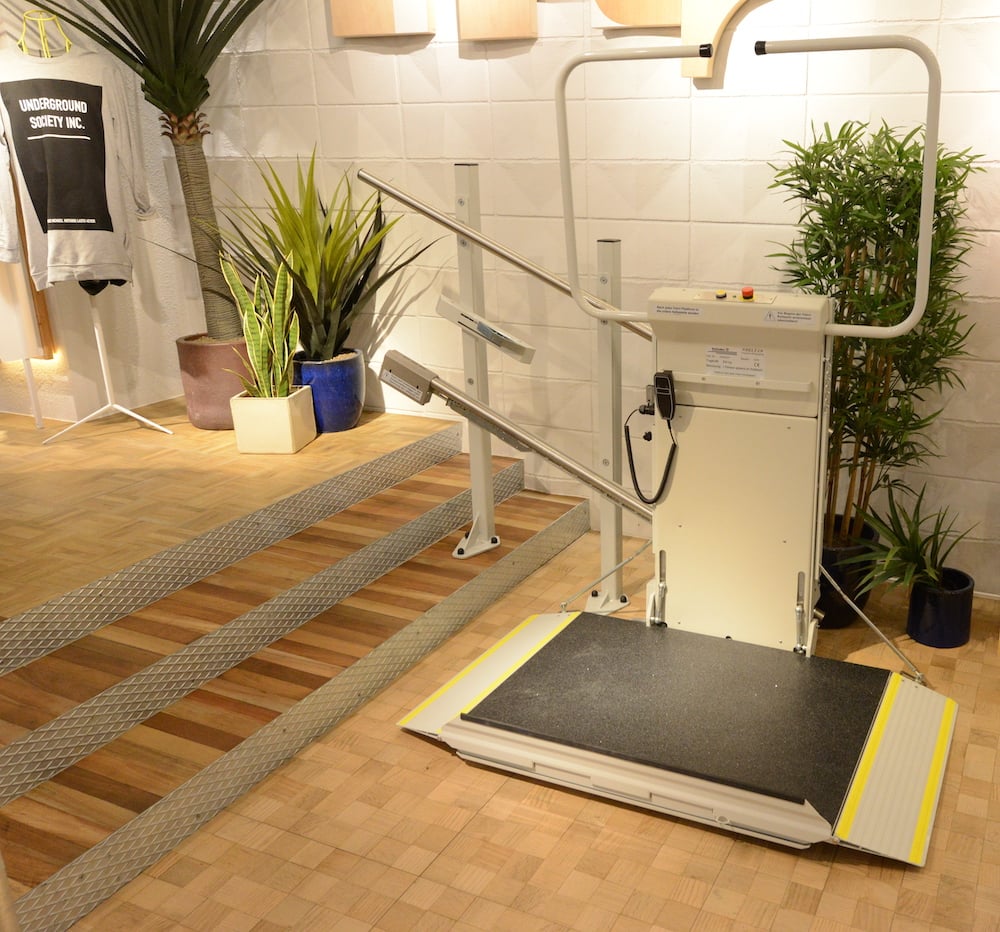

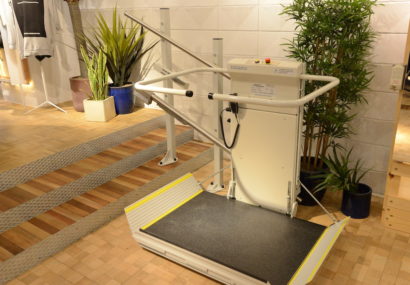

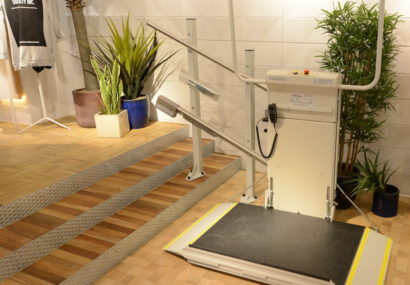

Designed for straight staircases, the S7 SR can be fitted directly to a wall or supported on stanchion posts.  Choose from four platform sizes, ranging from 700mm (w) x 750mm (l) to 800mm (w) x 1000mm (l).  The platform folds down to a narrow profile for maximum stairway clearance.

Convenient, safe and easy to use

Built-in safety features ensure that it is impossible to operate the lift until the barrier arms and ramps are folded and in place – automatically locking down before the platform moves.  The lift stops automatically at the upper and lower landings and constant pressure controls allow the user to stop the lift at any time.  It also stops automatically if it meets an obstruction on the staircase.  A manual lowering system can be operated in case of emergency.

Key Features

Safe – built-in safety features, as standard

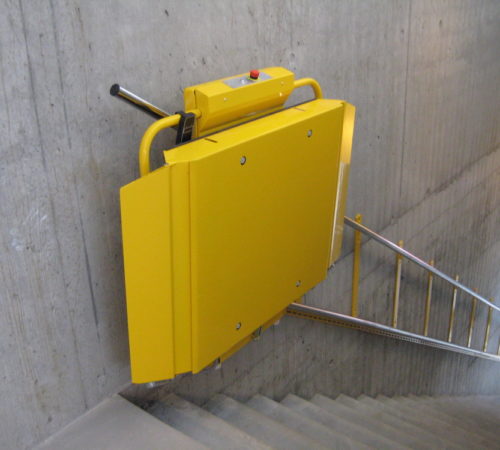

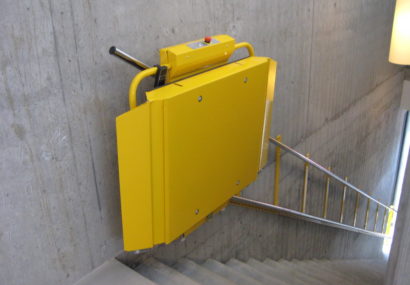

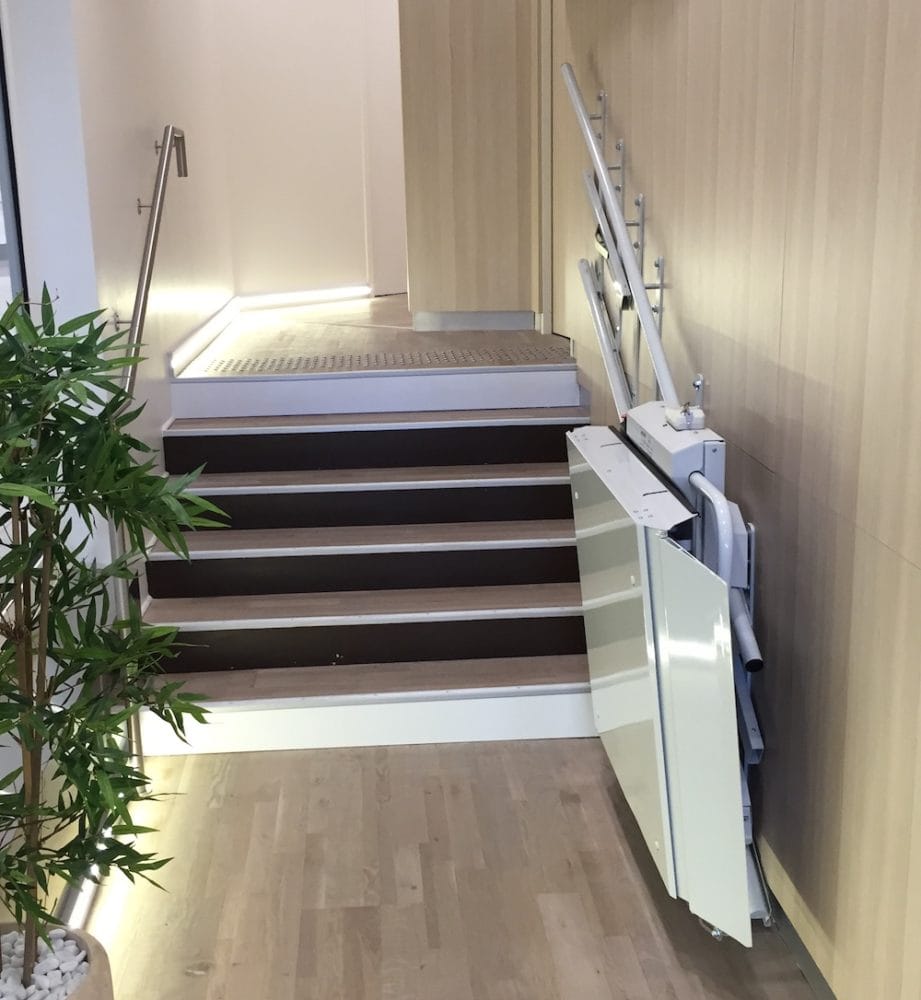

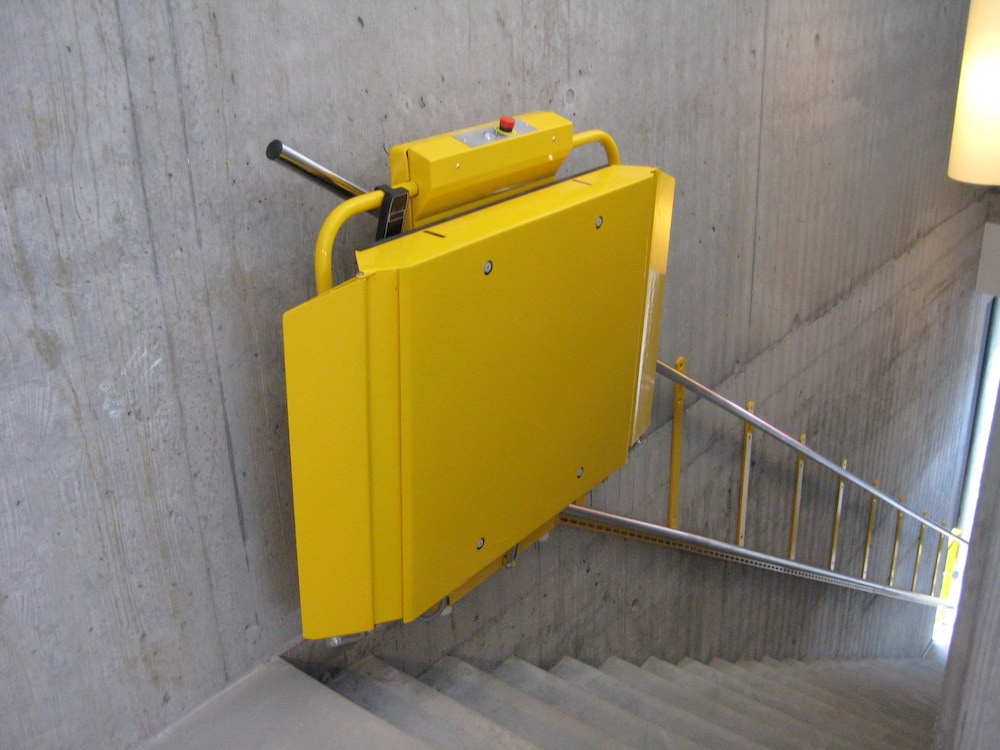

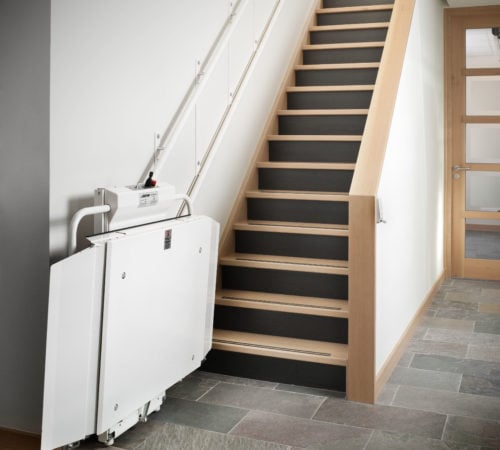

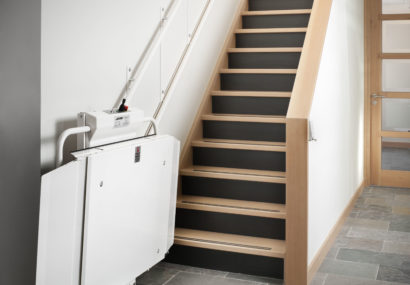

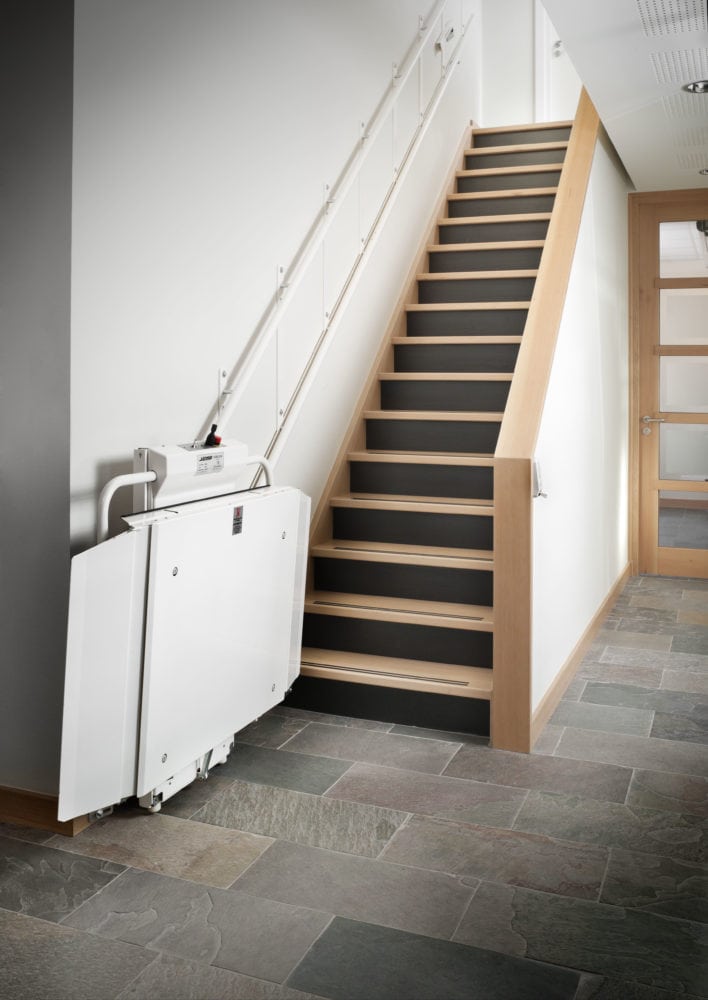

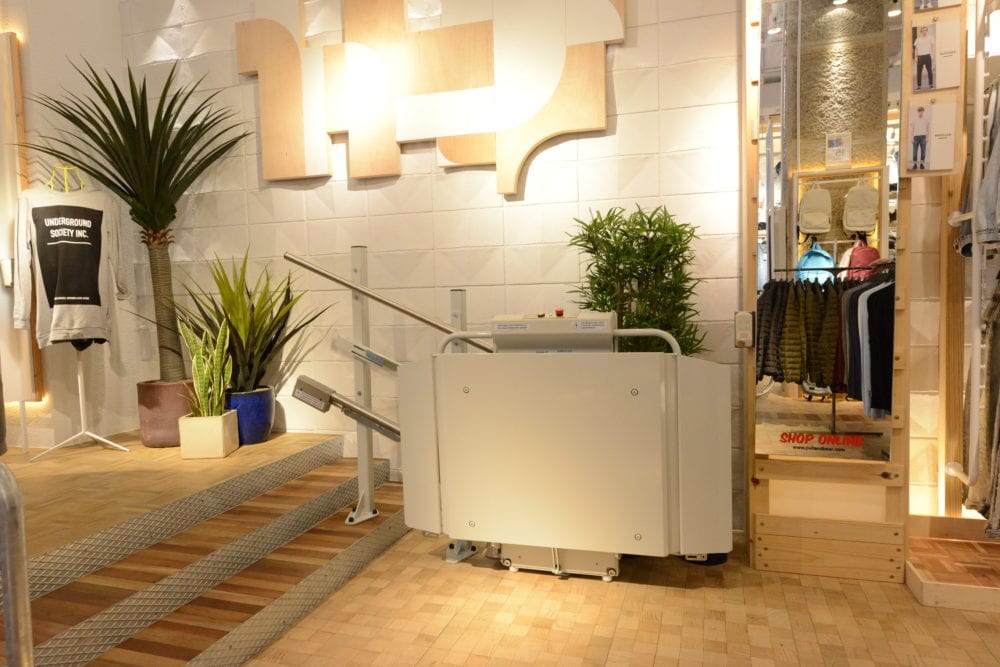

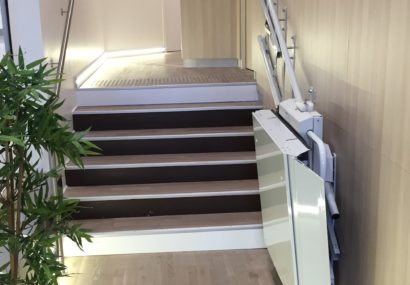

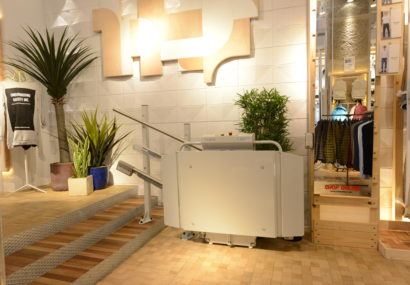

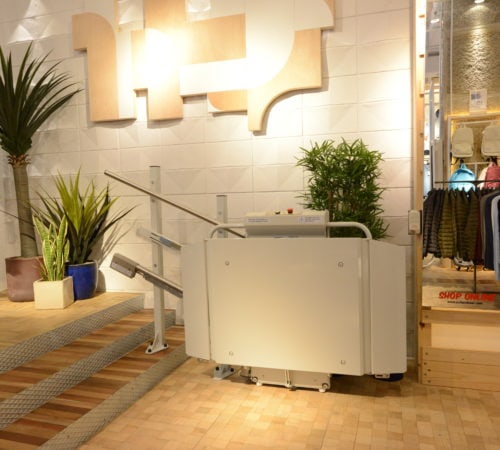

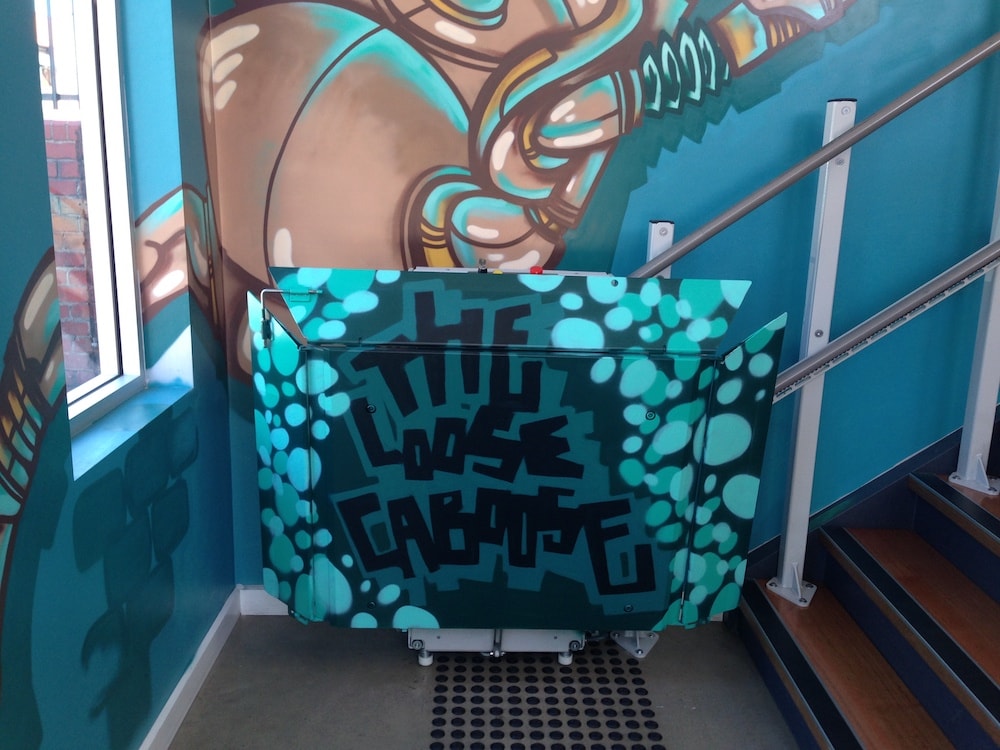

Unobtrusive – can be folded and parked so as not to block the staircase

Easy to operate – can be operated independently by the user or by an attendant

Technical Specification

Lift Size: Clear platform area: 800mm x 1250mm

Maximum travel: Unlimited, within reason.

Usage & Suitability: In addition to providing access to wheelchair users, the S7 SR can also be fitted with a fold down seat for less mobile individuals.

Technical Compliance: EN81-40, CE marked, British Standards, TüV, SA and ISO9386-2

Load Capacity: 225kg

Installation: Can be installed with little or no structural modifications

Operation: Soft start. Key controlled operation. Constant pressure control for user or attendant

Power Supply: 240V 50Hz to charging points top and bottom (24V battery driven in operation)

Drive System: Rack and pinion. Drive motor 400 watts.

Speed: 0.10 m/sec

Stair angle: 20-50 degree stair angle

Warranty: 12 months

Options

Indoor and outdoor models

Increased load capacity to 300kg

Side load (adjacent)

Folding seat

Wander lead (hand held control for use by an attendant)

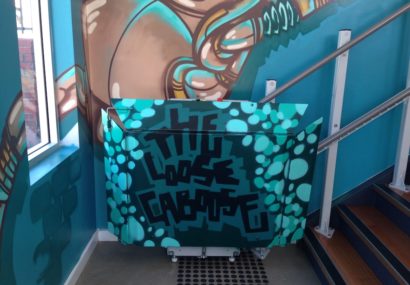

Non-standard RAL colours available upon request

Galvanised, stainless steel or powder coated mild steel stanchions for indoor or outdoor applications

Curved option available upon request
