TSL 1000 Step Lift

Suitable for: Wheelchair Icon

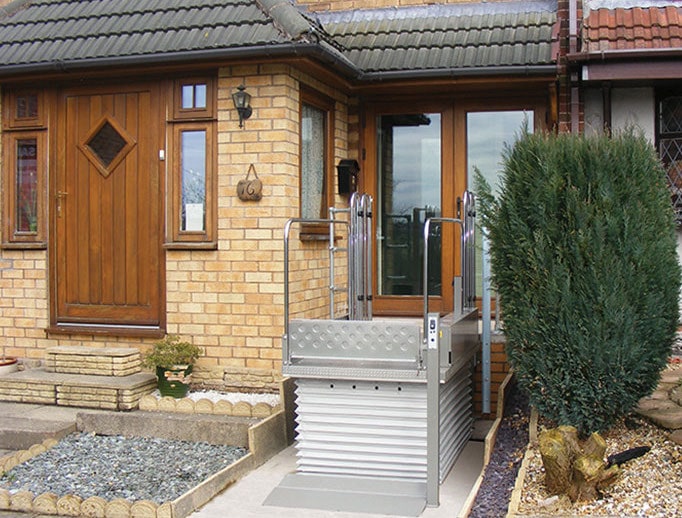

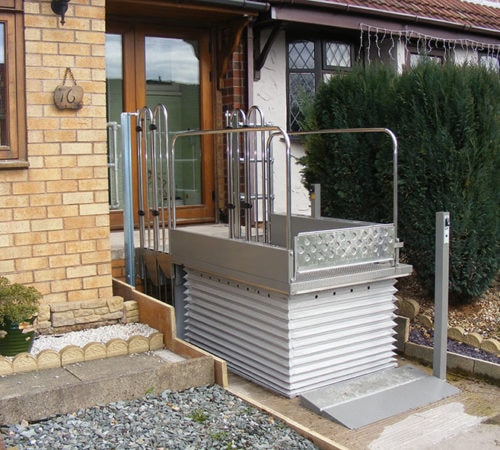

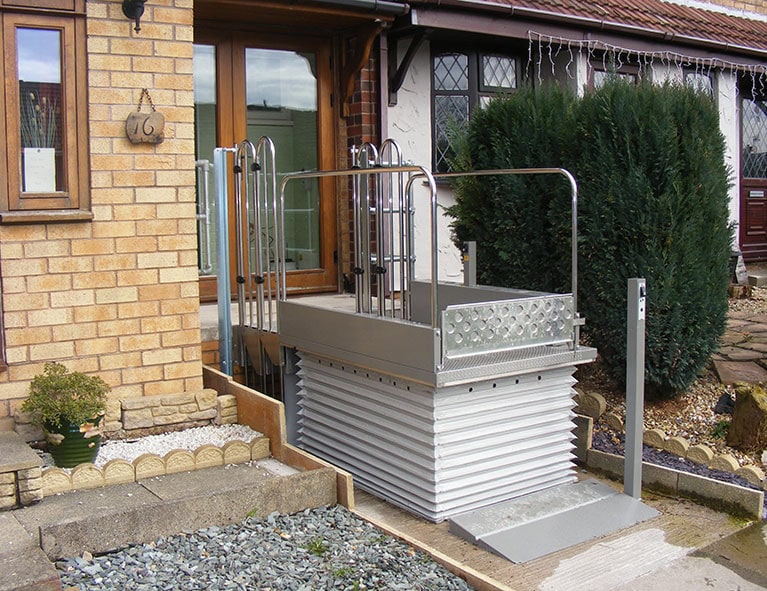

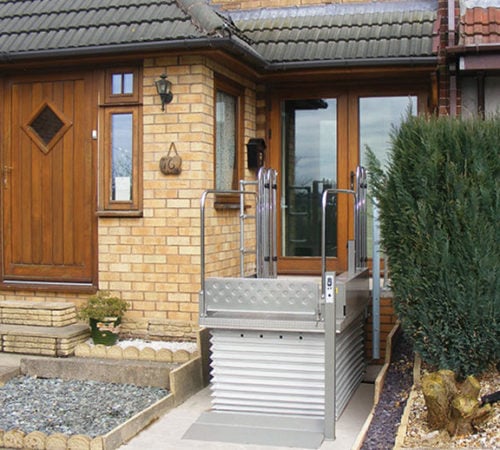

If wheelchair access to your home or garden is obstructed by several steps, the TSL 1000 offers a comprehensive and practical solution, especially when a ramp is not a feasible option.

The second of our Step Lift range; the TSL 1000 can travel up to one metre and can be easily installed inside or outside of your home.

Easy and flexible access to your home

The TSL 1000 is easy to use and offers wheelchair users the freedom to access their home and garden, independently.  While the step lift provides convenient wheelchair access, it also allows the rest of the family to continue using the same entrance.

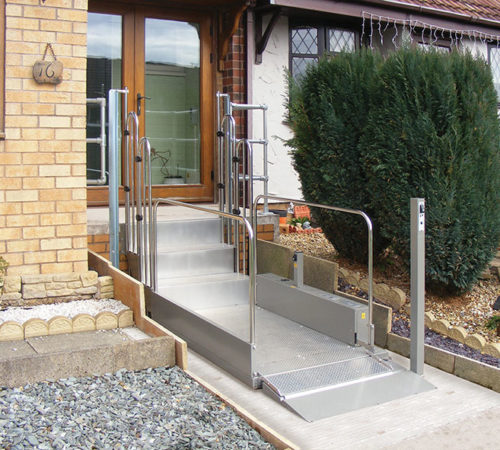

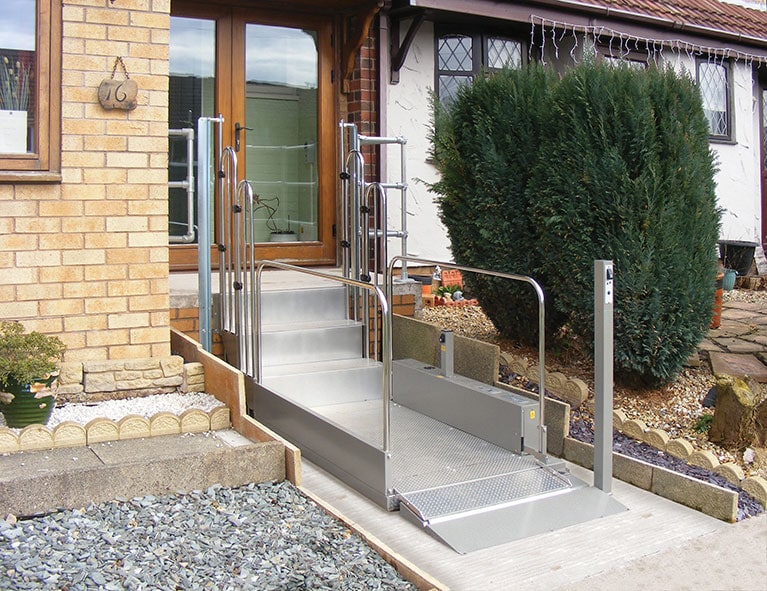

Manufactured in the UK to BS 6440 standards, the TSL 1000 Step Lift consists of a self-contained unit that can be installed on a flat 100 mm concrete base by our experienced engineers in just one day.  The lift is available with upper gate protection or alternatively with a triple bridge step unit.

Key Features

Design and sizes tailored to suit your requirements

Versatile – up to one metre rise with bridging steps for up to three steps

Can easily be re-sited

Durable for outdoor use

Self-contained unit which is easy and quick to install, typically within a day

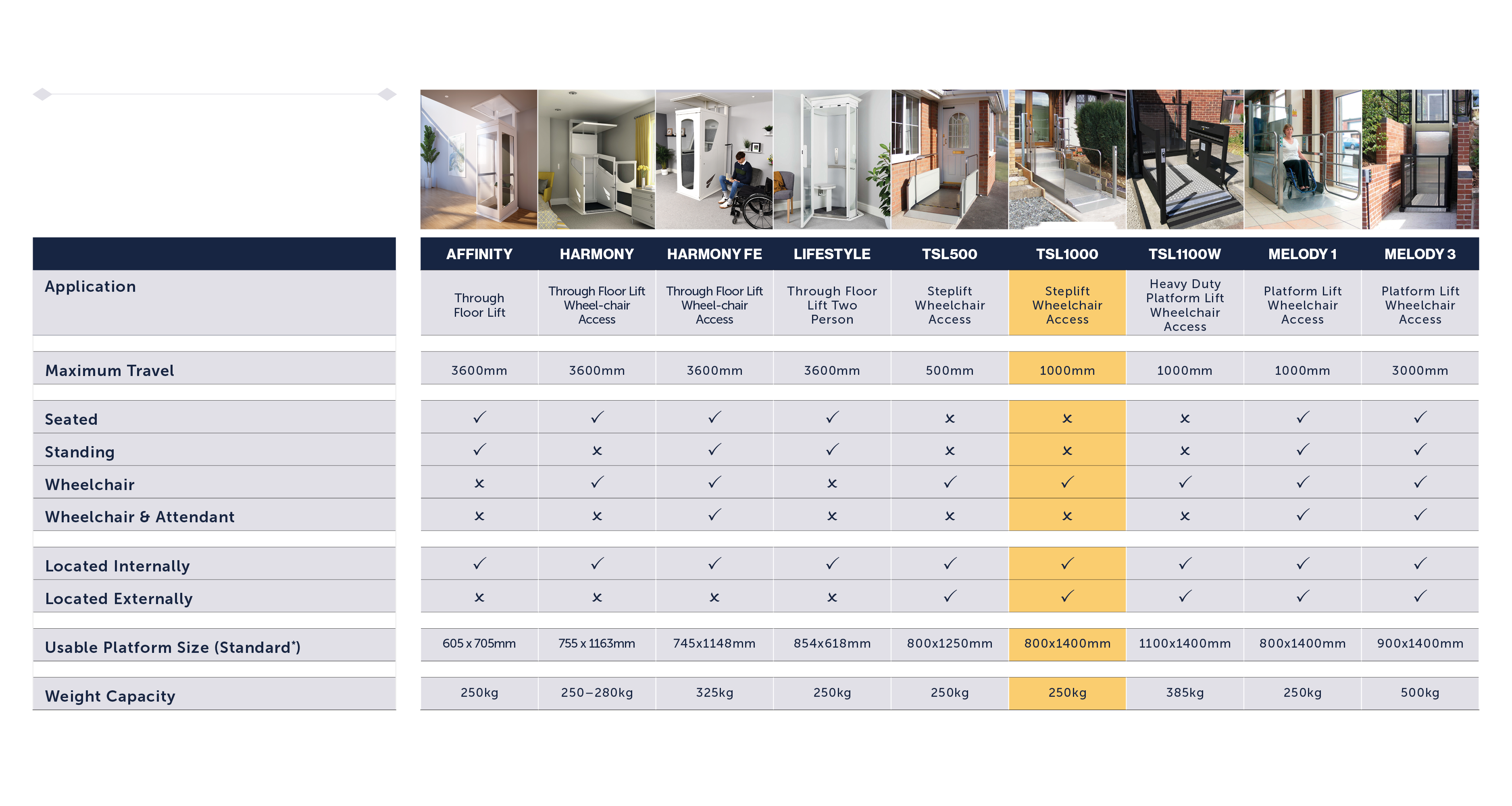

Technical Specification

Lift Size: Internal platform width – 800mm or 900mm wide option

Number of Floors/Travel: Maximum height served: 1000 mm

Usage & Suitability: Can be used externally and internally. Wheelchair users only. If you require a lift to carry a wheelchair and attendant or for standing use only, please refer to our Melody 1 and 3 lifts.

Technical Compliance: BS 6440:2011 and CE Mark

Load Capacity: 250kg (39 stone)

Installation: One day

Operation: Constant pressure controls

Power Supply: 220 / 240V~50 / 60 Hz-13 A single phase. Battery back-up.

Low voltage control system: 24V DC

Drive System: Hydraulic scissor mechanism

Safety: Automatic wheelchair arrestor mechanism

Speed: 0.06m/sec

Operating temperature: -10 degrees C to 40 degrees C

Warranty: 12 months

Optional Extras

Single, double or triple step bridging

Radio control enabler

Remote up/down control

Pit installation (indoor only)

Upper gate interlock kit

Powered upper level gate
