Suitable for:

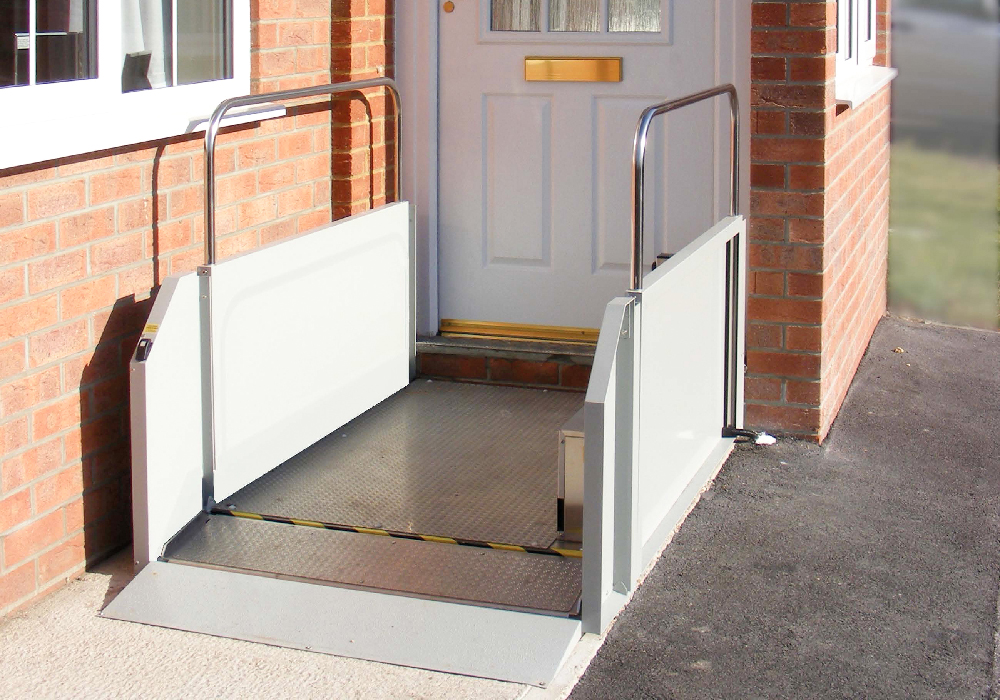

It can be installed outdoors or indoors, providing independent wheelchair access to a domestic property. The TSL 500 is a flexible solution, travelling safely up to a height of 500 mm.
Simple and practical solution to access the home or garden
A ramp is not always a feasible option which is why the TSL 500 Step Lift can provide a safe and cost-effective alternative.
When supplied with bridging steps, the lift allows both wheelchair users and those who are more mobile to access the same entrance. Alternatively, we can provide the lift with upper level gate protection.
Design and sizes tailored to suit your requirements
Versatile – supplied either with bridging steps or upper level gate protection
Can easily be re-sited
Self-contained unit which is easy and quick to install, typically within a day
Durable for outdoor use
Lift Size: Internal platform width – 800mm
Number of Floors/Travel: Maximum height served: 500 mm

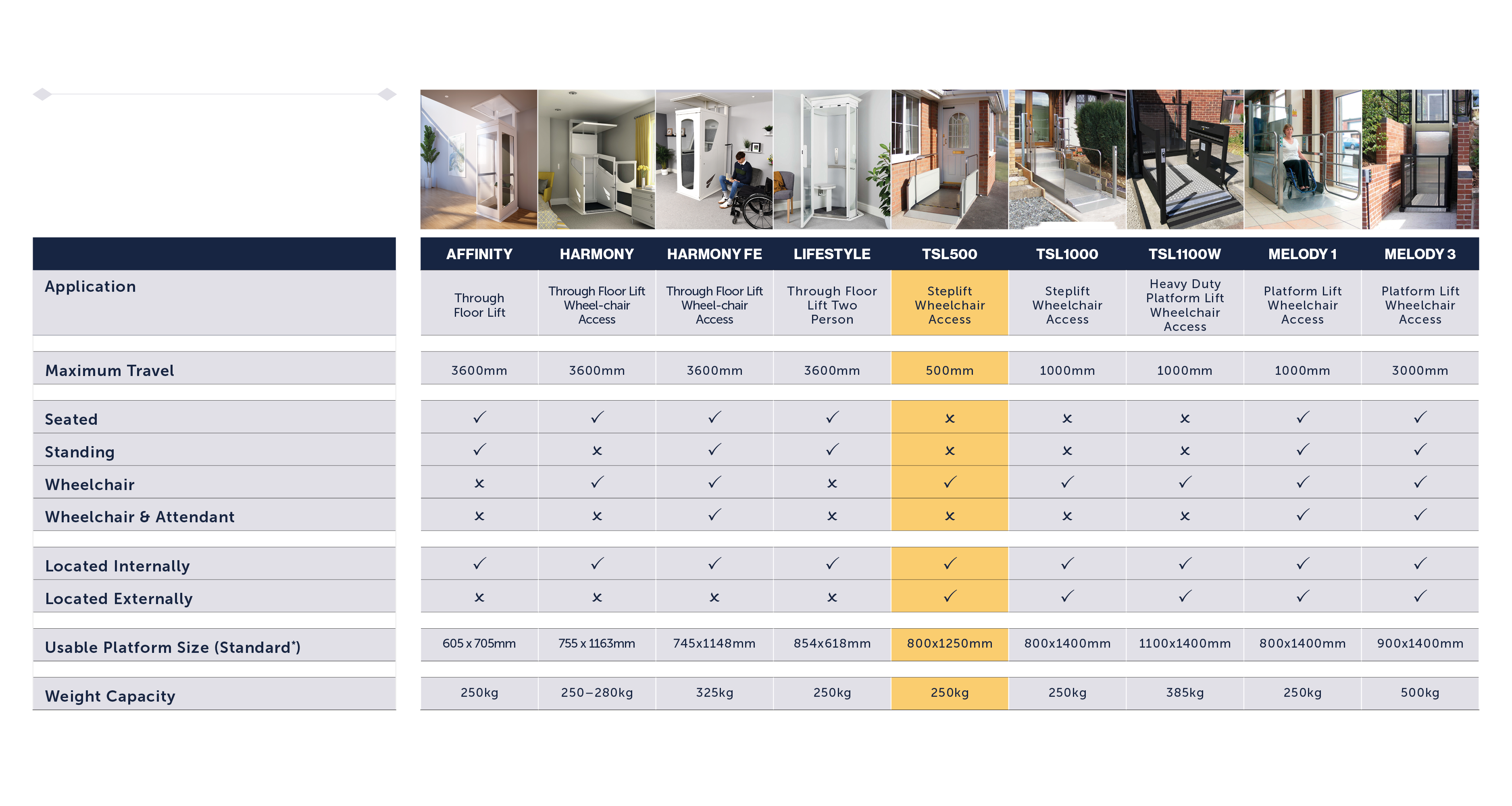

Usage & Suitability: Can be used externally and internally. Wheelchair users only. If you require a lift to carry a wheelchair and attendant or for standing use only, please refer to our Melody 1 and 3 lifts.
Technical Compliance: BS 6440:2011 and CE Mark
Load Capacity: 250kg (39 stone)
Installation: One day
Operation: Constant pressure controls
Power Supply: 220 / 240V~50 / 60 Hz-13 A single phase. Battery back-up.
Low voltage control system: 24V DC
Drive System: Hydraulic scissor mechanism
Safety: Automatic wheelchair arrestor mechanism
Speed: 0.06m/sec
Operating temperature: -10 degrees C to 40 degrees C
Warranty: 12 months
Handrails
Single step bridging
Remote control enabler
Remote up/down control
Upper gate interlock
Upper gate interlock kit
Powered upper level gate
